General Information | |
| Global Commercial Alias: | PSTX570-690-70 |
| Extended Product Type: | PSTX570-690-70 |
| Product ID: | 1SFA898217R7000 |
| ABB Type Designation: | PSTX570-690-70 |
| EAN: | 7320500508978 |

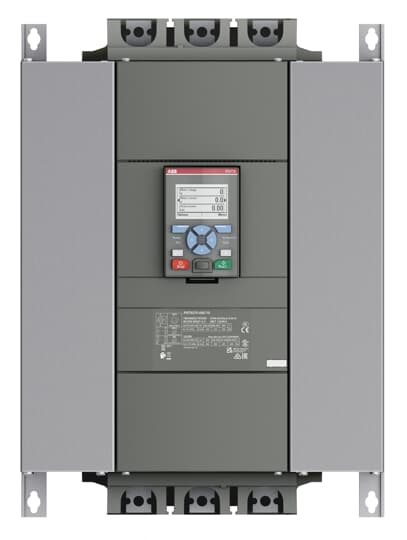

| Catalog Description: | PSTX570-690-70 Softstarter |
| Long Description: | Softstarter PSTX570-600-70 for max 690V main voltage and 100 - 250V 50/60Hz control supply voltage. |
| Interactive Guides | |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SFC132012C0201 |
| Instructions and Manuals: | 1SFC132081M0201 |
| |
| Product Net Width: | 361 mm |
| Product Net Height: | 493 mm |
| Product Net Depth / Length: | 282 mm |
| Product Net Weight: | 27 kg |
| |
| Rated Operational Voltage: | 208 ... 690 V AC |
| Rated Control Supply Voltage (Us): | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V |
| Rated Frequency (f): | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe): | (230 V) 160 kW |
| (400 V) 315 kW | |
| (500 V) 400 kW | |
| (690 V) 560 kW | |
| Rated Operational Current - In-Line Connection (Ie): | 570 A |
| Rated Operational Power - Inside Delta Connection: | at 230 V 295 kW |
| at 400 V 540 kW | |
| at 500 V 700 kW | |
| at 690 V 960 kW | |
| Rated Operational Current - Inside Delta Connection: | 987 A |
| Service Factor Percentage: | 100 % |
| Overload Protection: | Built-in electronic overload protection |
| Integrated Electronic Overload: | Yes |
| Adjustable Rated Motor Current Ie: | 30 ... 100 % |
| Starting Capacity at Maximum Rated Current Ie: | 4xIe for 10s |
| Ramp Time: | 1 ... 120 second [unit of time] |
| Initial Voltage During Start: | 10 ... 99 % |
| Step Down Voltage Special Ramp: | 100 ... 10 % |
| Switch for Inside Delta Connection: | Yes |
| Run Signal Relay: | Yes |
| By-pass Signal Relay: | Yes |
| Fault Signal Relay: | Yes |
| Overload Signal Relay: | Yes |
| Signal indication ready to start/standby ON (LED): | Green |
| Signal indication running R (LED): | Green |
| Signal indication protection (LED): | Yellow |
| Signal indication fault (LED): | Red |
| Communication: | Built in Modbus interface, Anybus, FieldBusPlug (with adapter). |
| Degree of Protection: | IP00 |
| Terminal Type: | Main Circuit: Bars |
| Connecting Capacity Control Circuit: | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit: | Rigid 1 x 2.5 mm² |
| Tightening Torque: | Main Circuit 35 N·m |
| Product Main Type: | PSTX570 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 690 V |
| Ampere Rating UL/CSA: | 590 A |
| Tightening Torque UL/CSA: | Main Circuit 309.8 in·lb |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| CQC Certificate: | CN: CQC2015010304806588 / SE: CQC2015010304797766 |
| Declaration of Conformity - CCC: | CN: 2020980304001094 / SE: 2020980304001859 |
| Declaration of Conformity - CE: | 2CMT005209 |
| Environmental Information: | 2CMT005232 |
| Instructions and Manuals: | 1SFC132081M0201 |
| RoHS Information: | 2CMT005210 |
| |
| Package Level 1 Width: | 470 mm |
| Package Level 1 Depth / Length: | 381 mm |
| Package Level 1 Height: | 650 mm |
| Package Level 1 Gross Weight: | 31 kg |
| Package Level 1 EAN: | 7320500508978 |
| Package Level 1 Units: | box 1 piece |
| |
| Object Classification Code: | Q |
| ETIM 6: | EC002572 - Motor management device |
| UNSPSC: | 39121521 |
