General Information | |
| Extended Product Type: | PS3/6 |
| Product ID: | 2CDL231001R1006 |
| EAN: | 4016779463409 |

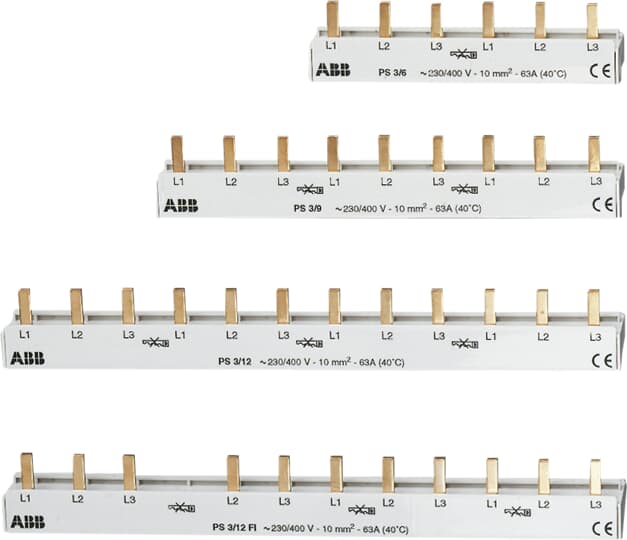

| Catalog Description: | PS3/6 Busbar |
| Long Description: | PS3/6 Busbar |
| |
| Standards: | IEC/EN 60947-1 |
| Product Name: | Busbar |
| Suitable For: | S200 |
| F200 | |
| DDA200 | |
| Suitable for Product Class: | 3-pole or 1-pole devices |
| Residual Current Circuit Breakers | |
| Residual Current Circuit Breakers with Overcurrent Protection | |
| Rated Operational Voltage: | 690 V AC/DC |
| Rated Frequency (f): | 50 / 60 Hz |
| DC | |
| Number of Phases: | 3 |
| Number of Terminals (N | |
| term | 6 |
| Overvoltage Category: | III |
| Accessory Type: | Busbar |
| Housing Material: | Light grey, RAL 7035 |
| Mounting Position: | Any |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Grey |
| Rated Cross-Section: | 10 mm² |
| |
| Pollution Degree: | 2 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | DIN EN 60068 |
| |
| Width in Number of Modular Spacings: | 6 |
| Product Net Width: | 21 mm |
| Product Net Height: | 27 mm |
| Product Net Depth / Length: | 106 mm |
| Product Net Weight: | 0.042 kg |
| Product Net Length: | 106 mm |
| |
| Package Level 1 Units: | 60 piece |
| Package Level 1 Width: | 135 mm |
| Package Level 1 Height: | 100 mm |
| Package Level 1 Depth / Length: | 220 mm |
| Package Level 1 Gross Weight: | 2.57 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| E-Number (Finland): | 3211052 |
| E-Number (Sweden): | 2102713 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK446006D0403 |
| Environmental Information: | DIN EN 60068 |
| Instructions and Manuals: | 2CSC400002D0208 |
| RoHS Information: | 2CDK440009K0203 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A8017 |
| Instructions and Manuals: | 2CSC400002D0208 |
| |
| ETIM 6: | EC000215 - Phase busbar |
| ETIM 7: | EC000215 - Phase busbar |
| ETIM 8: | EC000215 - Phase busbar |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8536 90 10 |
| UNSPSC: | 39121614 |
| eClass: | V11.0 : 27371306 |
| Object Classification Code: | W |
