Article: PSE30-600-70
We find the right product
for you
Official reseller
Expert engineering support
Configuration
Category Related Guides: ABB improves mining industry efficiency - Softstarter PSTX
General Information | |
| Global Commercial Alias: | PSE30-600-70 |
| Extended Product Type: | PSE30-600-70 |
| Product ID: | 1SFA897103R7000 |
| ABB Type Designation: | PSE30-600-70 |
| EAN: | 7320500400616 |

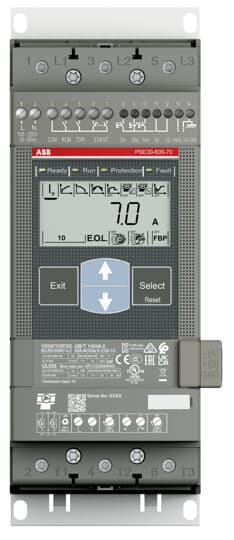

| Catalog Description: | PSE30-600-70 Softstarter |
| Long Description: | Softstarter PSE30-600-70 for max 600V main voltage and 100 - 250V 50/60Hz control supply voltage. |
| Interactive Guides | |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SFC132012C0201 |
| Instructions and Manuals: | 1SFC132057M0201 |
| |
| Product Net Width: | 90 mm |
| Product Net Height: | 245 mm |
| Product Net Depth / Length: | 184 mm |
| Product Net Weight: | 2.5 kg |
| |
| Rated Operational Voltage: | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us): | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V |
| Rated Frequency (f): | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe): | (230 V) 7.5 kW |
| (400 V) 15 kW | |
| (500 V) 18.5 kW | |
| Rated Operational Current - In-Line Connection (Ie): | 30 A |
| Service Factor Percentage: | 100 % |
| Overload Protection: | Build-in electronic overload protection |
| Integrated Electronic Overload: | Yes |
| Adjustable Rated Motor Current Ie: | 30 ... 100 % |
| Starting Capacity at Maximum Rated Current Ie: | 4xIe for 10s |
| Ramp Time: | 0 ... 30 second [unit of time] |
| 1 ... 30 second [unit of time] | |
| Initial Voltage During Start: | 30 ... 70 % |
| Step Down Voltage Special Ramp: | No % |
| Current Limit Function: | 1.5 ... 7xIe |
| Switch for Inside Delta Connection: | No |
| Run Signal Relay: | Yes |
| By-pass Signal Relay: | Yes |
| Fault Signal Relay: | Yes |
| Overload Signal Relay: | Yes |
| Analog Outputs: | 4…20 mA |
| Signal indication completed start ramp (LED): | Green |
| Signal indication ready to start/standby ON (LED): | Green |
| Signal indication running R (LED): | Green |
| Signal indication ramping up/down (LED): | Green |
| Signal indication protection (LED): | Yellow |
| Signal indication fault (LED): | Red |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: | 10 |
| Communication: | FiledBusPlug(Optional) |
| Degree of Protection: | IP00 |
| Terminal Type: | Screw Terminals |
| Connecting Capacity Main Circuit: | Hole Diameter 8.5 MMT mm² |
| Rigid 1/2 x 2.5 ... 70 mm² | |
| Width and Thickness 17.5x5 MMT | |
| Connecting Capacity Control Circuit: | Rigid 1 x 2.5 mm² |
| Rigid 2 x 1.5 mm² | |
| Connecting Capacity Supply Circuit: | Rigid 1 x 2.5 mm² |
| Tightening Torque: | Control Circuit 0.5 N·m |
| Main Circuit 9 N·m | |
| Supply Circuit 0.5 N·m | |
| Product Main Type: | PSE30 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V |
| Ampere Rating UL/CSA: | 28 A |
| Tightening Torque UL/CSA: | Control Circuit 4.4 in·lb |
| Main Circuit 79.7 in·lb | |
| Supply Circuit 4.4 in·lb | |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| CQC Certificate: | CQC2011010304468093 |
| Declaration of Conformity - CCC: | 2020980304001546 |
| Declaration of Conformity - CE: | 2CMT2015-005447 |
| Environmental Information: | 1SFC132042D0201 |
| Instructions and Manuals: | 1SFC132057M0201 |
| RoHS Information: | 1SFC132043D0201 |
| |
| Package Level 1 Width: | 178 mm |
| Package Level 1 Depth / Length: | 257 mm |
| Package Level 1 Height: | 288 mm |
| Package Level 1 Gross Weight: | 3.2 kg |
| Package Level 1 EAN: | 7320500400616 |
| Package Level 1 Units: | box 1 piece |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC002572 - Electronic motor control and protection device |
| ETIM 5: | EC002572 - Electronic motor control and protection device |
| ETIM 6: | EC002572 - Motor management device |
| UNSPSC: | 39121521 |
