Article: PSH 4/58N
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | PSH 4/58N |
| Product ID: | 2CDL140001R1058 |
| EAN: | 4016779663915 |

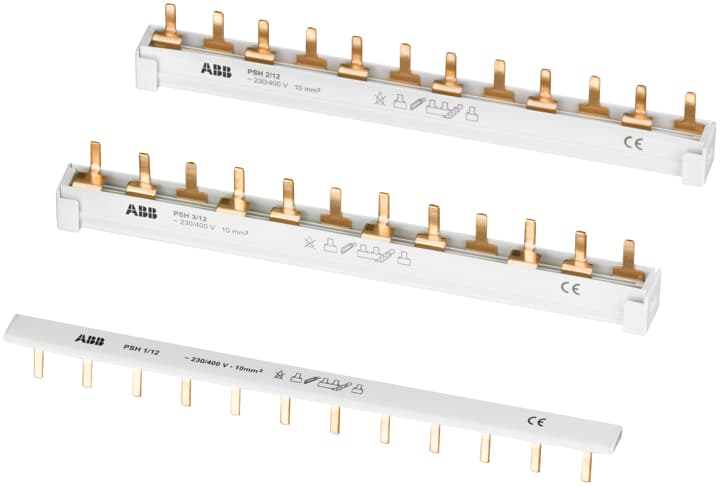

| Catalog Description: | PSH 4/58N Busbar |
| Long Description: | PSH 4/58N Busbar |
| |
| Product Name: | Busbar |
| Suitable For: | Sytem pro M compact Home range |
| Suitable for Product Class: | Miniature Circuit Breakers MCBs |
| Accessory Type: | Busbar |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CDU400029D0201 |
| |
| Product Net Width: | 19.3 mm |
| Product Net Height: | 30.5 mm |
| Product Net Depth / Length: | 1020 mm |
| Product Net Weight: | 0.556 kg |
| Product Net Length: | 1020 mm |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 80 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 1020 mm |
| Package Level 1 Gross Weight: | 5.77 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK446006D0401 |
| Environmental Information: | 2CDU400029D0201 |
| Instructions and Manuals: | 2CSC400002D0208 |
| RoHS Information: | 2CDK440009K0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A8017 |
| Instructions and Manuals: | 2CSC400002D0208 |
| |
| ETIM 6: | EC000215 - Phase busbar |
| ETIM 7: | EC000215 - Phase busbar |
| ETIM 8: | EC000215 - Phase busbar |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8536 90 10 |
| UNSPSC: | 39121614 |
| eClass: | V11.0 : 27371306 |
| Object Classification Code: | W |
