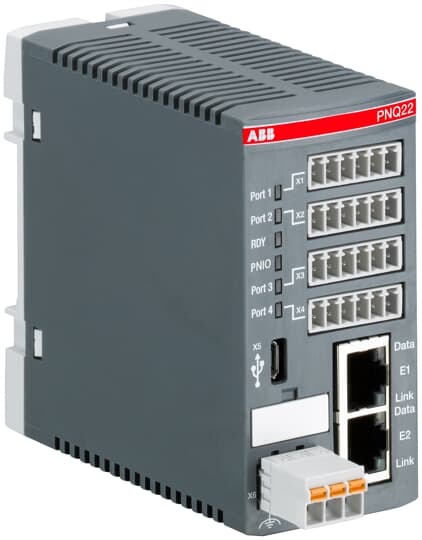

PNQ22-FBP.0 Profinet interface for 4 UMC100.3
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | PNQ22-FBP.0 |
| Product ID: | 1SAJ261000R0100 |
| EAN: | 4013614493218 |
| Catalog Description: | PNQ22-FBP.0 Profinet interface for 4 UMC100.3 |
| Long Description: | The PNQ22-FBP.0 Ethernet communication module supports the PROFINET network protocol and allowes the connection of up to 4 UMC100.3 motor controllers. |
| |
| Standards: | CAN/CSA C22.2 No.142 |
| IEC/EN 61131-2 | |
| UL 508 | |
| Product Name: | Universal Motor Controllers Accessories |
| Suitable For: | UMC100 |
| Suitable for Isolation: | No |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Power Loss: | Approximately 3.5 W |
| Fieldbus Interface Type: | Profinet IO |
| Mounting Type: | DIN-rail |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 45 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 96 mm |
| Product Net Weight: | 0.172 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 45 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 96 mm |
| Package Level 1 Gross Weight: | 0.175 kg |
| Package Level 1 EAN: | 4013614493218 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85176200 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| ABS Certificate: | 17-HG1610225-PDA |
| cULus Certificate: | cULus508_20140131-E17981 |
| Declaration of Conformity - CE: | 1SVD981043 |
| DNV GL Certificate: | TAA000015X |
| Instructions and Manuals: | 2CDC194004M6802 |
| RoHS Information: | 1SVD981043 |
| Regulatory Compliance Mark (RCM): | No |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC192015D0201 |
| Instructions and Manuals: | 2CDC194004M6802 |
| |
| ETIM 6: | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7: | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8: | EC001604 - Fieldbus, decentr. periphery - communication module |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / Motor overload switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8517 62 00 |
| eClass: | V11.0 : 27242608 |
| Object Classification Code: | K |
