Article: 841 AL
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 841 AL |
| Product ID: | 7TAA003040R0006 |
| EAN: | 0785991017960 |
| Catalog Description: | 1G FLUSH SVC FLR-BX 15CU ALUM TRIM |

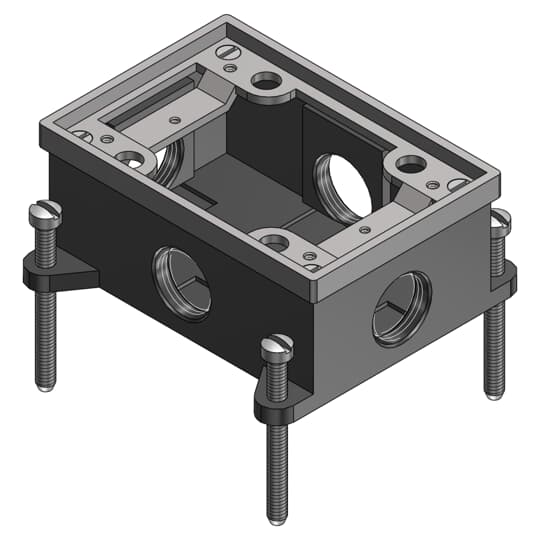

| Long Description: | Single Gang Flush Service Floor Box, 15 Cubic Inches, Length 5-1/2 Inches, Width 4 Inches, Depth 2 Inches, 3/4 Inch Conduit Hubs, Cast Iron with Aluminum Trim, For Power, Communications, and Data |
| |
| EAN: | 0785991017960 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 4.9 in |
| 124 mm | |
| Package Level 1 Height: | 2.4 in |
| 61 mm | |
| Package Level 1 Depth / Length: | 4.9 in |
| 124 mm | |
| Package Level 2 Units: | 4 piece |
| Package Level 2 Width: | 5.5 in |
| 140 mm | |
| Package Level 2 Height: | 2.7 in |
| 69 mm | |
| Package Level 2 Depth / Length: | 5.7 in |
| 145 mm | |
| |
| Application: | Ideal for the modern office with workstations that have power, communications and data equipment |
| Brand / Label: | Steel City |
| Effective Date: | 19991027 |
| Material: | Aluminum |
| Number of Batteries: | 0 |
| Product Name: | STEEL BOX |
| Product Type: | Flush Service |
| Special Functions: | Fully adjustable |
| Standards: | UL E2969 |
| UPC: | 785991017960 |
| Volume: | 15 in³ |
| |
| Data Sheet, Technical Information: | 841 AL |
| Instructions and Manuals: | 841 AL |
| |
| ETIM 6: | EC000024 - Installation box for underfloor-installation |
| ETIM 7: | EC000024 - Installation box for underfloor-installation |
| UNSPSC: | 39121307 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4432 >> Floor boxes |
