Article: ABB460P9WN
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ABB460P9WN |
| Product ID: | 2CMA105004R1000 |
| EAN: | 7392696050043 |

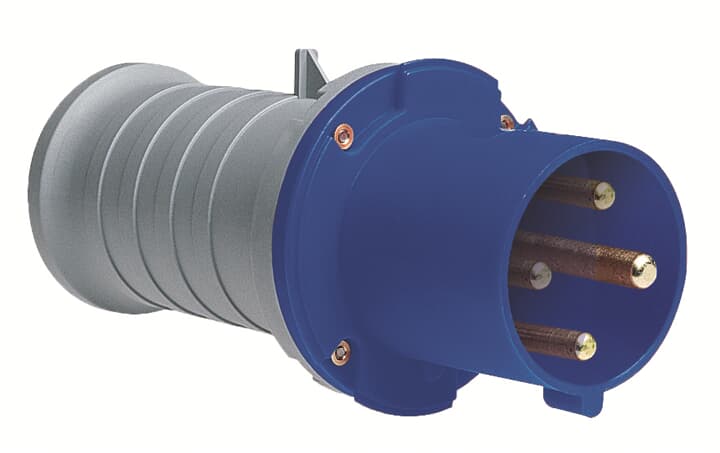

| Catalog Description: | ABB460P9WN Industrial Plug |
| Long Description: | IEC Plug for 60A and 200-250V AC 3P4W, UL/CSA/NSF approved and CE compliant |
| |
| EAN: | 7392696050043 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 114 mm |
| Product Net Height: | 114 mm |
| Product Net Weight: | 1.05 kg |
| Mechanical Drawings: | 9AKK107492A4181 |
| |
| Package Level 1 Width: | 138 mm |
| Package Level 1 Depth / Length: | 285 mm |
| Package Level 1 Height: | 120 mm |
| Package Level 1 Gross Weight: | 0.72 kg |
| Package Level 1 EAN: | 7392696050043 |
| Package Level 1 Units: | box 1 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | 2CHC660174X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0022 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0022 |
| UL Certificate: | E109550-19950105 |
| UL Listing Card: | 73E2 |
| REACH Declaration: | 2CMC700005D0022 |
| |
| Additional Information: | 3P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 4 ... 16 mm² |
| Cable Diameter: | 17 ... 35 mm |
| Color: | Blue |
| Connection Type: | Screw |
| Degree of Protection: | IP67 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Plug |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#ABB460P9WN |
| Number of Poles: | 4 |
| Order Multiple: | 1 piece |
| Product Main Type: | TP |
| Product Name: | Industrial Plug |
| Rated Current (In): | 60 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Standards: | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | No document needed |
| Installation Manual: | 2CMC700052M0001 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440509 |
| UNSPSC: | 39121402 |
| |
| Wire Size: | 8 ... 4 AWG |
| Tightening Torque: | WireClamp3.5 N·m |
