Article: 8SLEDNARWD2D
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8SLEDNARWD2D |
| Product ID: | 7TBA133020R3771 |
| EAN: | 0784170163863 |
| Catalog Description: | 8IN D.CST EM EDGLT DOME UNIV AC |

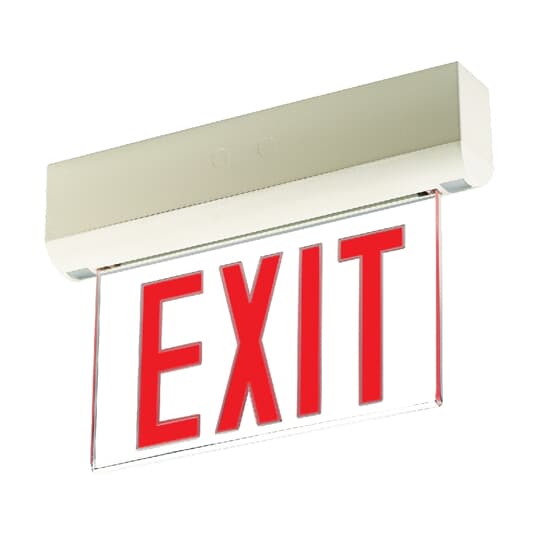

| Long Description: | Exit Sign, Letter Height Dimension: 8, 120 to 277VAC, Housing Colour: brushed aluminum, Legend Colour: red, Panel Colour: white, Trim Option: dome, double face, double chevron (two chevrons on each side), Legend Type: EXIT |
| |
| EAN: | 0784170163863 |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Weight: | 9.00081 lb |
| 4.082 kg | |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 9.5 in |
| 241 mm | |
| Package Level 1 Height: | 5.3 in |
| 135 mm | |
| Package Level 1 Depth / Length: | 19.3 in |
| 490 mm | |
| Package Level 1 Gross Weight: | 8.5 lb |
| Package Level 1 EAN: | 0784170163863 |
| Package Level 2 Units: | box 3 piece |
| Package Level 2 Width: | 13.6 in |
| 345 mm | |
| Package Level 2 Height: | 15.1 in |
| 384 mm | |
| Package Level 2 Depth / Length: | 20.8 in |
| 528 mm | |
| Package Level 2 Gross Weight: | 25.5 lb |
| Package Level 2 EAN: | 0784170163863 |
| |
| Application: | Architectural |
| Brand / Label: | LUMACELL / LIGHTALARMS |
| Color of Display Background: | White |
| Housing Color: | Brushed Aluminum |
| Material: | Die-cast aluminum |
| Mounting Type: | Surface or recessed |
| Number of Batteries: | 0 |
| Product Main Type: | Emergency Lighting |
| Product Name: | EXIT SIGN ILLUMINATE ALUM. HOUSING |
| Product Type: | Exit Signs |
| Standards: | UL |
| Text Color: | Red |
| UPC: | 784170163863 |
| Voltage Rating: | 120 to 277 V AC |
| |
| Data Sheet, Technical Information: | 8SLEDNARWD2D |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 8SLEDNARWD2D |
| |
| ETIM 6: | EC001957 - Emergency luminaire |
| ETIM 7: | EC001957 - Emergency luminaire |
| UNSPSC: | 39111708 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 3939 >> Emergency exit illuminated sign |
