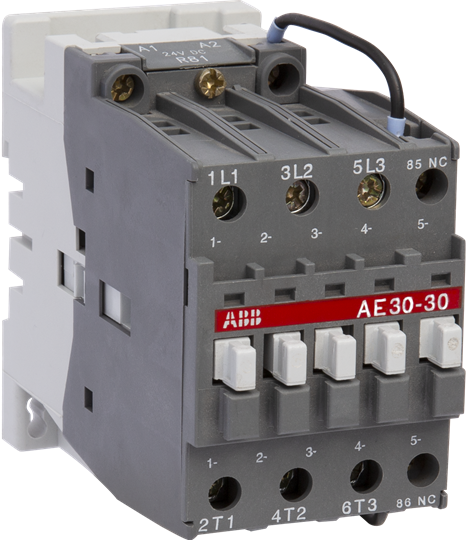

AE40-30-00 110V DC Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AE40-30-00 110V DC |
| Product ID: | 1SBL329001R8600 |
| EAN: | 3471522230867 |
| Catalog Description: | AE40-30-00 110V DC Contactor |
| Long Description: | AE40 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AE... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with standard double-winding DC coils (with add-on factory-mounted lagging contact for insertion of the"holding" winding) - Accessories: a wide range of accessories is available. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100122C0202_Ch02 |
| Instructions and Manuals: | FPTC407722P0001 |
| |
| Product Net Width: | 54 mm |
| Product Net Depth / Length: | 108.3 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.71 kg |
| |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Standards: | Devices complying with international standards IEC 947-1 / 947-4-1 and European standards EN 60 947-1 / 60 947-4-1. Electromagnetic compatibility (EMC) according to amendment A11 to IEC 947-1, EN 60 947-1 and amendment 2 to IEC 947-4-1 |
| Rated Operational Voltage: | Main Circuit 690 V |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 65 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 60 |
| (690 V) 55 °C 60 | |
| (690 V) 70 °C 42 | |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 37 A |
| (440 V) 55 °C 37 A | |
| (500 V) 55 °C 33 A | |
| (690 V) 55 °C 25 A | |
| (380 / 400 V) 55 °C 37 A | |
| (220 / 230 / 240 V) 55 °C 40 | |
| Rated Operational Power AC-3 (Pe): | (415 V) 18.5 kW |
| (440 V) 22 kW | |
| (500 V) 22 kW | |
| (690 V) 22 kW | |
| (380 / 400 V) 18.5 kW | |
| (220 / 230 / 240 V) 11 kW | |
| Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: | 8 x Ie AC-3 |
| Rated Making Capacity AC-3 acc. to IEC 60947-4-1: | 10 x Ie AC-3 |
| Short-Circuit Protective Devices: | gG Type Fuses 63 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A |
| cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 340 A | |
| Maximum Electrical Switching Frequency: | (AC-1) 600 cycles per hour |
| (AC-2 / AC-4) 300 cycles per hour | |
| (AC-3) 600 cycles per hour | |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | DC Operation 110 V |
| Coil Consumption: | Average Holding Value, from Warm State 2.5 W |
| Average Pull-in Value, from Cold State 110 W | |
| Pull-in at Max. Rated Control Circuit Voltage DC 110 W | |
| Operate Time: | Between Coil De-energization and NO Contact Opening 6 ... 12 ms |
| Between Coil Energization and NO Contact Closing 13 ... 21 ms | |
| Connecting Capacity Main Circuit: | Flexible with Cable End 2.5 ... 10 mm² |
| Rigid Cable 2.5 ... 16 mm² | |
| Connecting Capacity Auxiliary Circuit: | Flexible with Cable End 0.75 ... 2.5 mm² |
| Rigid Cable 1 ... 4 mm² | |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| Connecting Terminals (delivered in open position) Main Poles: | M 5 (+,-) pozidriv 2 screw with 2x (5.6x6.5 mm) connector |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 °C |
| Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +55 °C | |
| Close to Contactor without Thermal O/L Relay (Uc) -40 ... +70 °C | |
| Close to Contactor for Storage -60 ... +80 °C | |
| Climatic Withstand: | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible: | 3000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | CSA_1033838_LR056745 |
| Declaration of Conformity - CE: | 1SBD250804U1000 |
| EAC Certificate: | EAC_RU C-FR ME77 B01010 |
| Environmental Information: | 1SBD250016E1002 |
| GOST Certificate: | GOST_POCCFRME77B07175 |
| Instructions and Manuals: | FPTC407722P0001 |
| RoHS Information: | 1SBD250804U1000 |
| UL Certificate: | UL_071301E39231 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 101 mm |
| Package Level 1 Depth / Length: | 115 mm |
| Package Level 1 Height: | 61 mm |
| Package Level 1 Gross Weight: | 0.71 kg |
| Package Level 1 EAN: | 3471522230867 |
| Package Level 2 Units: | box 24 piece |
| Package Level 2 Width: | 300 mm |
| Package Level 2 Depth / Length: | 245 mm |
| Package Level 2 Height: | 308 mm |
| Package Level 2 Gross Weight: | 17.04 kg |
| Package Level 3 Units: | 576 piece |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371018 |
| UNSPSC: | 39121529 |
