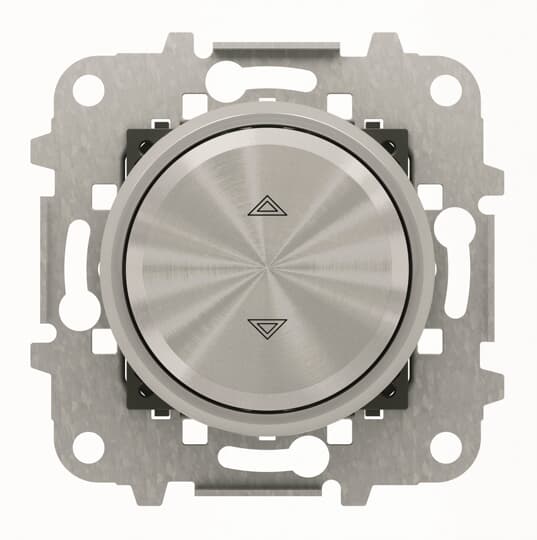

8630.3 CR Electronic blind control 1-gang - Chrome
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8630.3 CR |
| Product ID: | 2CLA863030A1401 |
| EAN: | 8427238139944 |
| Catalog Description: | 8630.3 CR Electronic blind control 1-gang - Chrome |
| Long Description: | Rated voltage: 110 - 250 Vac; 50/60 HzRated current: 700VA@230Vac / 350VA@127VacDirect controlFunctions: - PERS: standard blinds control. Optionally other 8144 inserts can be connected to the 8630.3 to control the blind from other locations - LAM: venetian type blinds control. Optionally other 8144 inserts can be connected to the 8630.3 to control the blind from other locations- Centralization (CEN): one 8630.3 can control all the 8630.3 of a line centrally Without fixing claws Included: metallic rocker coverRing color: Chrome |
| |
| Product Name: | Electronic blind control 1-gang - Chrome |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 10 A |
| Number of Poles: | 1 |
| Number of Buttons: | 1 |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Surface Finishing: | Glossy |
| Material: | Metal |
| Model Number: | 1-pole push button |
| Color: | Chrome |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.074 m |
| Product Net Height: | 0.062 m |
| Product Net Depth / Length: | 0.074 m |
| Product Net Weight: | 0.035 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.074 m |
| Package Level 1 Height: | 0.062 m |
| Package Level 1 Depth / Length: | 0.074 m |
| Package Level 1 Gross Weight: | 0.035 kg |
| Package Level 1 EAN: | 8427238139944 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX860009A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX860009A1001 |
| |
| ETIM 6: | EC000044 - Venetian blind switch/-push button |
| ETIM 7: | EC000044 - Venetian blind switch/-push button |
| ETIM 8: | EC000044 - Venetian blind switch/-push button |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| UNSPSC: | 39122214 |
