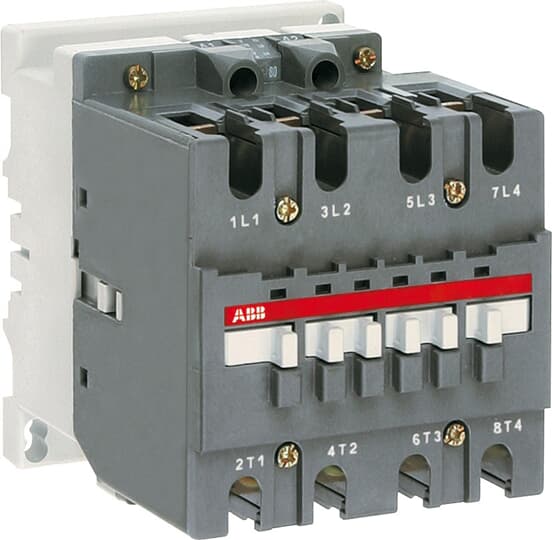

A45-40-00RT 230-240V50Hz 240-260V60Hz Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | A45-40-00RT 230-240V50Hz 240-260V60Hz |
| Product ID: | 1SBL331210R8800 |
| EAN: | 3471522244086 |
| Catalog Description: | A45-40-00RT 230-240V50Hz 240-260V60Hz Contactor |
| Long Description: | A45 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The A... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC101015D0203 |
| Instructions and Manuals: | FPTC407767P0002 |
| |
| Product Net Width: | 92 mm |
| Product Net Depth / Length: | 119.5 mm |
| Product Net Height: | 110 mm |
| Product Net Weight: | 1.39 kg |
| |
| Number of Main Contacts NO: | 4 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 70 |
| (690 V) 55 °C 60 | |
| (690 V) 70 °C 50 | |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 37 A |
| (440 V) 55 °C 37 A | |
| (500 V) 55 °C 33 A | |
| (690 V) 55 °C 25 A | |
| (380 / 400 V) 55 °C 37 A | |
| (220 / 230 / 240 V) 55 °C 40 | |
| Rated Operational Power AC-3 (Pe): | (415 V) 25 kW |
| (440 V) 25 kW | |
| (500 V) 30 kW | |
| (690 V) 30 kW | |
| (380 / 400 V) 22 kW | |
| (220 / 230 / 240 V) 15 kW | |
| Rated Control Circuit Voltage (Uc): | 50 Hz 230 ... 240 V |
| 60 Hz 240 ... 260 V | |
| Terminal Type: | Ring-Tongue Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CQC Certificate: | CQC2018010304129267 |
| Declaration of Conformity - CCC: | 2020980304001622 |
| Declaration of Conformity - CE: | 1SBD250810U1000 |
| EAC Certificate: | EAC_RU C-FR ME77 B03599 |
| Environmental Information: | 1SBD250007E1003 |
| Instructions and Manuals: | FPTC407767P0002 |
| RoHS Information: | 1SBD250810U1000 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 142 mm |
| Package Level 1 Depth / Length: | 190 mm |
| Package Level 1 Height: | 136 mm |
| Package Level 1 Gross Weight: | 1.39 kg |
| Package Level 1 EAN: | 3471522244086 |
| Package Level 2 Units: | box 8 piece |
| Package Level 2 Width: | 503 mm |
| Package Level 2 Depth / Length: | 153 mm |
| Package Level 2 Height: | 307 mm |
| Package Level 2 Gross Weight: | 11.12 kg |
| Package Level 3 Units: | 84 piece |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
