Article: A1202 20
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | A1202 20 |
| Product ID: | 7TAA005050R0002 |
| EAN: | 0616013100875 |
| Catalog Description: | CHNL BK-BK 12GA 1-5/8X1-5/8 20FT |

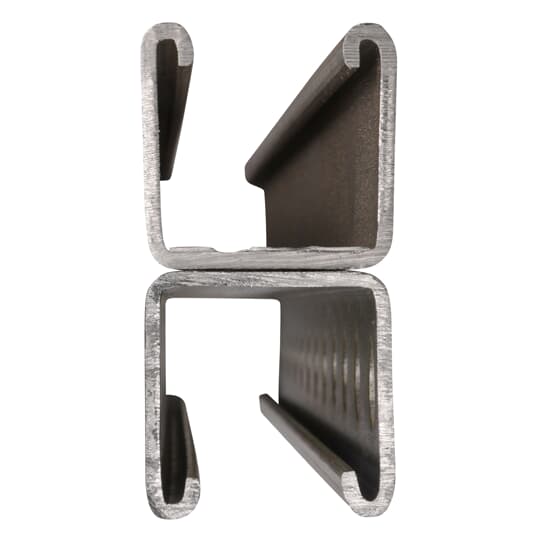

| Long Description: | Channel, 12 Gauge, 1-5/8 Inch x 1-5/8 Inch, Length 20 Feet, Steel, Back to Back Combination |
| |
| EAN: | 0616013100875 |
| |
| Product Net Width: | 1-5/8 in |
| Product Net Depth / Length: | 20 ft |
| |
| Package Level 1 Units: | 240 ft |
| Package Level 1 Width: | 9.5 in |
| 241 mm | |
| Package Level 1 Height: | 8.5 in |
| 216 mm | |
| Package Level 1 Depth / Length: | 240 in |
| 6096 mm | |
| Package Level 2 Units: | 240 ft |
| |
| Application: | Support and framing applications |
| Brand / Label: | Superstrut |
| Effective Date: | 19991027 |
| Gauge: | 12 gauge |
| Material: | Steel |
| Number of Batteries: | 0 |
| Product Name: | SUPERSTRUT CHANNEL & ACCES |
| Product Type: | Metal Channels |
| Special Functions: | Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces. |
| Surface Finishing: | Gold |
| UPC: | 616013100875 |
| |
| Data Sheet, Technical Information: | A1202 20 |
| Instructions and Manuals: | A1202 20 |
| |
| ETIM 6: | EC000386 - Support/profile rail |
| ETIM 7: | EC000386 - Support/profile rail |
| UNSPSC: | 30101804 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 2577 >> Steel channels |
