Article: 8181.2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | 8181.2 |
| Product ID: | 2CLA818120A1001 |
| EAN: | 8427238063195 |

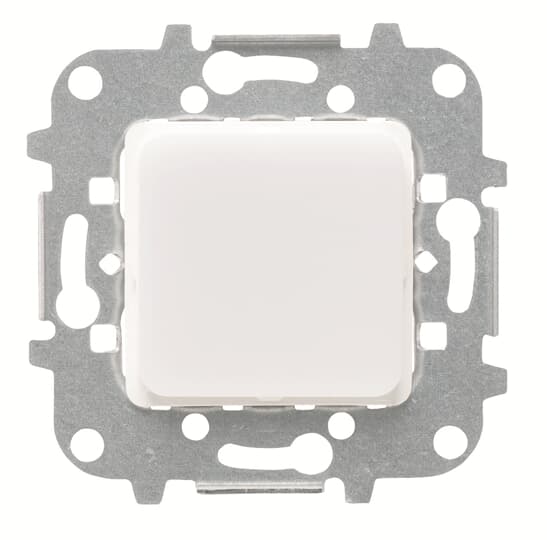

| Catalog Description: | 8181.2 Beacon LED light |
| Long Description: | Rated voltage: 230 Vac / 50 HzLamp: blue and high luminosity white LED (selectable with rotatory switch)Luminous flux: > 2 lumen at 1 meterWhite diffuserAutonomy: 3 hours (1 hour at maximum illumination 2 hours with lower illumination) Battery: Ni-MH (estimated lifetime: 4 years). |
| |
| Product Name: | Beacon LED light |
| Function: | Escape route lighting/signage |
| Rated Voltage (Ur): | 230...230 V |
| Input Voltage Type: | AC |
| Power Consumption (@P | |
| cons | 7 W |
| Power Supply Type: | Peripheral (Individual Battery) |
| Number of Poles: | 2 |
| Number of Lamps: | 1 |
| Number of Lighting Heads: | 1 |
| Functional Testing Capability: | Automatic Self Test |
| Wiring Configuration: | Wiring system: Continuous circuit/emergency circuit |
| Type of wiring: Ending | |
| Ballast Type: | Current Controlled |
| Connection Type: | Screw |
| Lamp Type: | LED not exchangeable |
| Light Distribution Type: | Diffuser Lens |
| Optic | |
| Panel | |
| Marking Type: | Sticker |
| Mounting Type: | Built-in |
| Type of Indicator: | Only single-sided |
| Cover Material: | Plastic, Transparent |
| Housing Material: | Plastic |
| Illuminance: | 2 lm |
| Housing Color: | Black |
| Battery Chemical Composition: | Nickel-Metal Hydride |
| Battery Type: | Portable |
| Battery Weight: | 0.04 kg |
| Number of Batteries: | 1 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| Protection Class: | Isolated |
| |
| Product Net Width: | 73 mm |
| Product Net Height: | 52 mm |
| Product Net Depth / Length: | 0.073 m |
| Product Net Weight: | 0.085 kg |
| Product Net Length: | 44 mm |
| Built-In Depth (t2): | 42 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.073 m |
| Package Level 1 Height: | 0.052 m |
| Package Level 1 Depth / Length: | 0.073 m |
| Package Level 1 Gross Weight: | 0.085 kg |
| Package Level 1 EAN: | 8427238063195 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX818139A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX818139A1001 |
| |
| ETIM 6: | EC001957 - Emergency luminaire |
| ETIM 7: | EC001957 - Emergency luminaire |
| ETIM 8: | EC000064 - Information light signal for domestic switching devices |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39111709 |
