General Information | |
| Extended Product Type: | 8188.3 |
| Product ID: | 2CLA818830A1001 |
| EAN: | 8427238204741 |

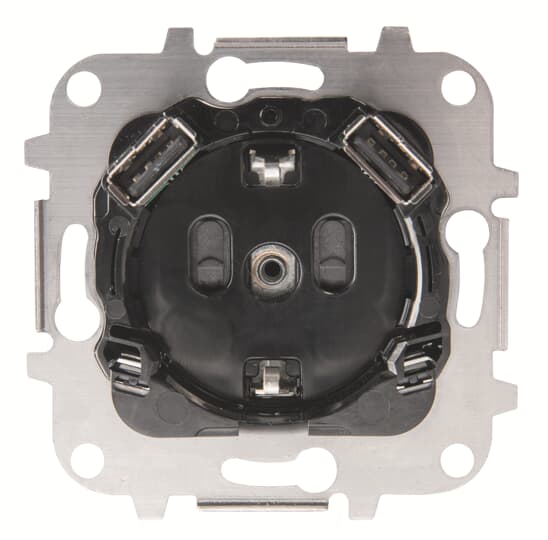

| Catalog Description: | 8188.3 Schuko socket outlet w/ 2 USB-A charger |
| Long Description: | Schuko® socket outlet:Rated voltage: 250 Vac. +/- 10%; 50/60 Hz.Rated current: 16A. Type F: 2P + E. With child safety shutterOperating temperature: -5º C ... 45 ºCUSB charger:Input current: 0,20 A (with maximum load).Output voltage: 5 Vdc ±5%.Output current: 2.000 mA.USB-port Type:Power consuption in stand-by: <= 0,015W@230Vac.Energy efficiency: >= 79%. Screw terminalsMax. torsion 0.8Nm according to ISO 60884-1Without fixing clawsCover plate code: 8588.3. |
| |
| Product Name: | Schuko socket outlet w/ 2 USB-A charger |
| Rated Voltage (Ur): | 220 V |
| Rated Current (In): | 15 A |
| Frequency (f): | 50...60 Hz |
| Number of Phases: | 2 |
| Number of Gangs: | 1 |
| Connection Type: | Screw |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Engage (Snap) |
| Legend: | Without imprint |
| Model Number: | Protective contact (SCHUKO) |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.149 m |
| Product Net Height: | 0.078 m |
| Product Net Depth / Length: | 0.225 m |
| Product Net Weight: | 0.066 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.152 m |
| Package Level 1 Height: | 0.078 m |
| Package Level 1 Depth / Length: | 0.225 m |
| Package Level 1 Gross Weight: | 0.65 kg |
| Package Level 1 EAN: | 8427238204741 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK1074920617 |
| Instructions and Manuals: | 2CLX818839A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX818839A1001 |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
