Article: 8180.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8180.1 |
| Product ID: | 2CLA818010A1001 |
| EAN: | 8427238063188 |

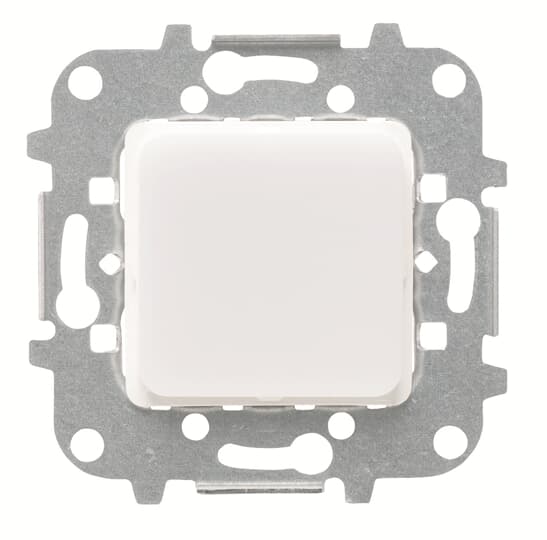

| Catalog Description: | 8180.1 LED signaling light |
| Long Description: | Rated voltage: 127-230 Vac / 50-60 HzLamp: white LEDLuminous flux: > 2 lumen at 1 meterWithout fixing claws Cover plate code: 8581 without pictogram or 8581.XX with pictogram, 8481 (optional 8481.1 pictograms), 8281 (optional 8281.1 pictograms) & 5581 (optional 5581.1 pictograms) |
| |
| Product Name: | LED signaling light |
| Rated Voltage (Ur): | 230 V |
| Lamp Type: | LED not exchangeable |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Surface Finishing: | Surface protection: Untreated |
| Surface finishing: Matt | |
| Material: | Plastic |
| Color: | Clear |
| Lamp Color: | White |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.073 m |
| Product Net Height: | 0.052 m |
| Product Net Depth / Length: | 0.073 m |
| Product Net Weight: | 0.068 kg |
| Built-In Depth (t2): | 40 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.073 m |
| Package Level 1 Height: | 0.052 m |
| Package Level 1 Depth / Length: | 0.073 m |
| Package Level 1 Gross Weight: | 0.068 kg |
| Package Level 1 EAN: | 8427238063188 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX818019A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX818019A1001 |
| |
| ETIM 6: | EC000064 - Information light signal for domestic switching devices |
| ETIM 7: | EC000064 - Information light signal for domestic switching devices |
| ETIM 8: | EC000064 - Information light signal for domestic switching devices |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
