General Information | |
| Extended Product Type: | 8188.9 |
| Product ID: | 2CLA818890A1001 |
| EAN: | 8427238135403 |

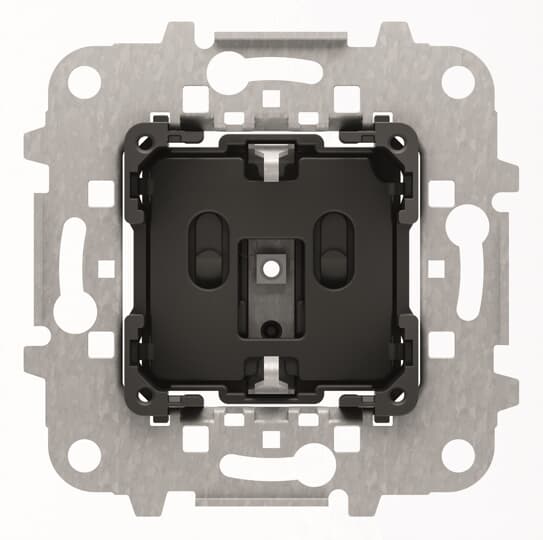

| Catalog Description: | 8188.9 Schuko socket outlet for plain covers |
| Long Description: | Rated voltage: 250 Vac Rated current: 16A Type F: 2P + E Shuttered for child safety Screw terminalsMax. torsion 0.8Nm according to ISO 60884-1Without fixing clawsCover plate code: 8588.9 & 8688.9 |
| |
| Product Name: | Schuko socket outlet for plain covers |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 16 A |
| Frequency (f): | 50...60 Hz |
| Number of Phases: | 2 |
| Number of Gangs: | 1 |
| Connection Type: | Screw |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Legend: | Without imprint |
| Model Number: | Protective contact (SCHUKO) |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.149 m |
| Product Net Height: | 0.078 m |
| Product Net Depth / Length: | 0.225 m |
| Product Net Weight: | 0.063 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.149 m |
| Package Level 1 Height: | 0.078 m |
| Package Level 1 Depth / Length: | 0.225 m |
| Package Level 1 Gross Weight: | 0.56 kg |
| Package Level 1 EAN: | 8427238135403 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK1074920617 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85366990 |
| UNSPSC: | 39121406 |
