Article: 826221K
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | 826221K |
| Product ID: | 7TCA091720R0066 |
| EAN: | 5415022370232 |
| Catalog Description: | WL3 ET 60L A (0976 950 871) |

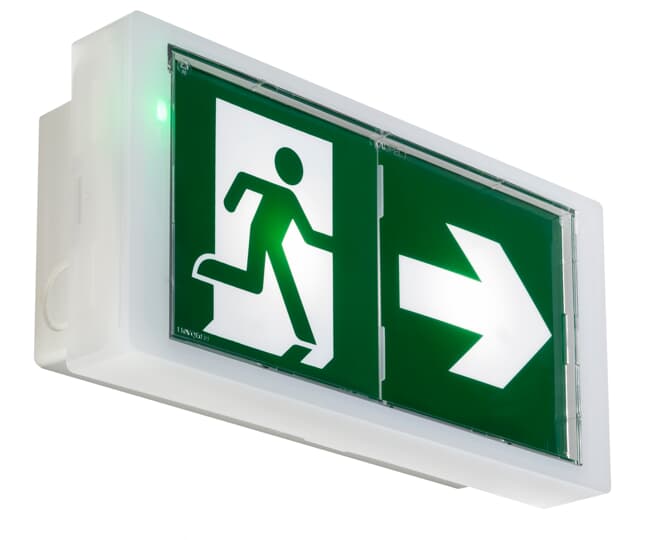

| Long Description: | Self Contained WL3 ET 60L A (0976 950 871) |
| |
| EAN: | 5415022370232 |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 61 mm |
| Product Net Height: | 112 mm |
| Product Net Depth / Length: | 233 mm |
| Product Net Weight: | 1.86984 lb |
| 848 g | |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 61 mm |
| Package Level 1 Height: | 112 mm |
| Package Level 1 Depth / Length: | 233 mm |
| Package Level 1 Gross Weight: | 0.510 kg |
| Package Level 1 EAN: | 5415022370232 |
| Package Level 2 Units: | box 10 piece |
| Package Level 2 Width: | 300 mm |
| Package Level 2 Height: | 300 mm |
| Package Level 2 Depth / Length: | 400 mm |
| Package Level 2 Gross Weight: | 6.3 kg |
| Package Level 2 EAN: | 5415022370232 |
| |
| Ambient Temperature: | IEC62722-2-1 0 ... 40 °C |
| Ballast Type: | Current Controlled |
| Battery Type: | Industrial |
| Battery Chemical Composition: | Nickel-Cadmium |
| Brand / Label: | KAUFEL (FR) |
| Degree of Protection: | IP65 |
| Function: | Escape route signage |
| Housing Color: | White |
| Housing Material: | Plastic |
| Illuminance: | 45 lm |
| Standby Mode 3 lm | |
| Input Voltage Type: | AC |
| Lamp Type: | LED not exchangeable |
| Mounting Type: | Wall surface mounted / ceiling surface mounting |
| Number of Batteries: | 1 |
| Operate Time: | 1 ... 1 hour |
| Power Consumption (@P | |
| cons | 0.5 W |
| Product Main Type: | Luminaire |
| Product Name: | Wurth |
| Protection Class: | Isolated |
| Rated Voltage (Ur): | 230 ... 230 V |
| Type of Indicator: | Only single-sided |
| UPC: | 075114286633 |
| |
| Data Sheet, Technical Information: | 9AKK107045A0906 |
| Declaration of Conformity - CE: | 9AKK106930A7425 |
| Instructions and Manuals: | 9AKK107045A0941 |
| |
| ETIM 6: | EC001957 - Emergency luminaire |
| ETIM 7: | EC001957 - Emergency luminaire |
| UNSPSC: | 39111709 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| IDEA Granular Category Code (IGCC): | 3940 >> Emergency light unit |
