Article: 8148
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8148 |
| Product ID: | 2CLA814800A1001 |
| EAN: | 8427238016603 |

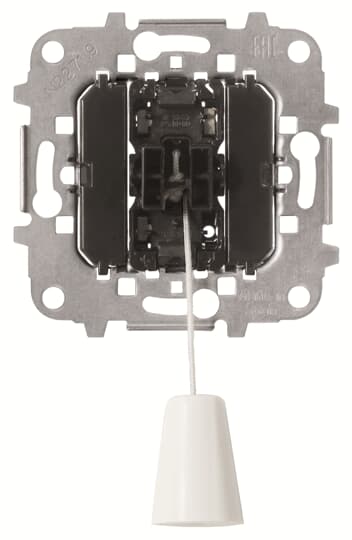

| Catalog Description: | 8148 Pullcord switch 1-gang, 1-way, single pole |
| Long Description: | Rated voltage: 110 - 250 Vac Rated current: 16A Screwless terminals Included: fixing claws Cord length: 2 meters Cover plate code: 8507, 8607, 8407, 8207 & 5507 |
| |
| Product Name: | Pullcord switch 1-gang, 1-way, single pole |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 10 A |
| Power Watt: | 2500...2500 W |
| Actuator Type: | Push button |
| Load Type: | Resistive load |
| Model Number: | Cord switch |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.101 m |
| Product Net Height: | 0.102 m |
| Product Net Depth / Length: | 0.208 m |
| Product Net Weight: | 0.063 kg |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 0.101 m |
| Package Level 1 Height: | 0.102 m |
| Package Level 1 Depth / Length: | 0.208 m |
| Package Level 1 Gross Weight: | 0.315 kg |
| Package Level 1 EAN: | 8427238016603 |
| |
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1744 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000445 - Cord switch/dimmer |
| ETIM 7: | EC000445 - Cord switch/dimmer |
| ETIM 8: | EC000445 - Cord switch/dimmer |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
