Article: 8150
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8150 |
| Product ID: | 2CLA815000A1001 |
| EAN: | 8427238045962 |

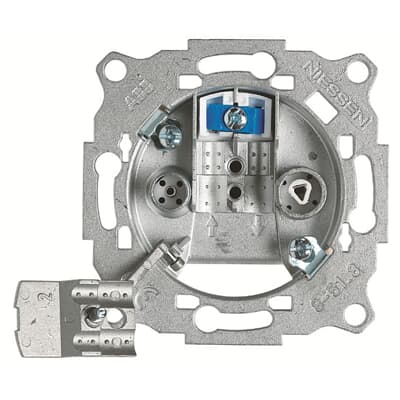

| Catalog Description: | 8150 TV / R terminal outlet |
| Long Description: | TV and R double outlet - FinalWithout filter.Installation as a terminal outlet connected to a tap-off or splitter (without terminal resistor).Connection: screw terminal and clamp.Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam.Frequency range (I/O / C1 / C2): 5 - 862 MHz / 5 - 862 MHz / 5 - 862 MHzBasic loss (FM / DAB / VHF / UHF): 10,0±0,7 dB / 10,0 ±1,5 dB / 4,0±1,5 dB / 3,0±0,5 dBIsolation (FM / TV): >14 / >14Return loss (FM / TV): >18 / >10 Included: fixing claws Cover plate code: 8550, 8650, N2250.8, 8450, 8250 & 5550 |
| |
| Product Name: | TV / R terminal outlet |
| Frequency (f): | 10...862 MHz |
| Number of IEC Outlets: | 2 |
| Cover Plate Type: | None |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Model Number: | End socket |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.149 m |
| Product Net Height: | 0.078 m |
| Product Net Depth / Length: | 0.225 m |
| Product Net Weight: | 0.096 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.149 m |
| Package Level 1 Height: | 0.078 m |
| Package Level 1 Depth / Length: | 0.225 m |
| Package Level 1 Gross Weight: | 0.93 kg |
| Package Level 1 EAN: | 8427238045962 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX815009A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX815009A1001 |
| |
| ETIM 6: | EC000439 - Antenna socket |
| ETIM 7: | EC000439 - Antenna socket |
| ETIM 8: | EC000439 - Antenna socket box |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
| UNSPSC: | 39121463 |
