General Information | |
| Extended Product Type: | 8150.3 |
| Product ID: | 2CLA815030A1001 |
| EAN: | 8427238045092 |

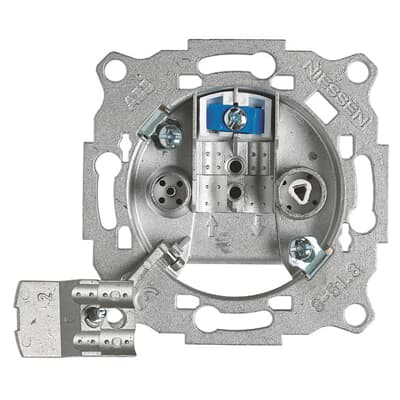

| Catalog Description: | 8150.3 TV / R final outlet - CATV outlet |
| Long Description: | TV and R double outlet - CATV outlet - FinalWith filter.Installation as a terminal outlet connected to a tap-off or splitter (without terminal resistor).Connection: screw terminal and clamp.Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam.Frequency range (C1 / C2): 5 - 68 & 118 - 1.000 MHz / 87,5 - 108 MHzBasic loss (R / FM / TV): 0,3±0,1 dB / 1,1 ±0,3 dB / 0,9±0,3 dBIsolation (FM / TV): >18 / >16Selectivity (FM / TV): >10 / >18Return loss (R / FM / TV): >18 / >16 / >18Chroma-luminance delay (ns): <10 Included: fixing claws Cover plate code: 8550, 8650, N2250.8, 8450, 8250 & 5550 |
| |
| Product Name: | TV / R final outlet - CATV outlet |
| Frequency (f): | 118...1000 MHz |
| Number of IEC Outlets: | 2 |
| Cover Plate Type: | None |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Model Number: | End socket |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.149 m |
| Product Net Height: | 0.078 m |
| Product Net Depth / Length: | 0.225 m |
| Product Net Weight: | 0.082 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.149 m |
| Package Level 1 Height: | 0.078 m |
| Package Level 1 Depth / Length: | 0.225 m |
| Package Level 1 Gross Weight: | 0.97 kg |
| Package Level 1 EAN: | 8427238045092 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A1761 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000439 - Antenna socket |
| ETIM 7: | EC000439 - Antenna socket |
| ETIM 8: | EC000439 - Antenna socket box |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
| UNSPSC: | 39121463 |
