Article: 8155.78
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8155.78 |
| Product ID: | 2CLA815578A1001 |
| EAN: | 8427238172439 |
| Catalog Description: | 8155.78 HDMI + USB connectors female |

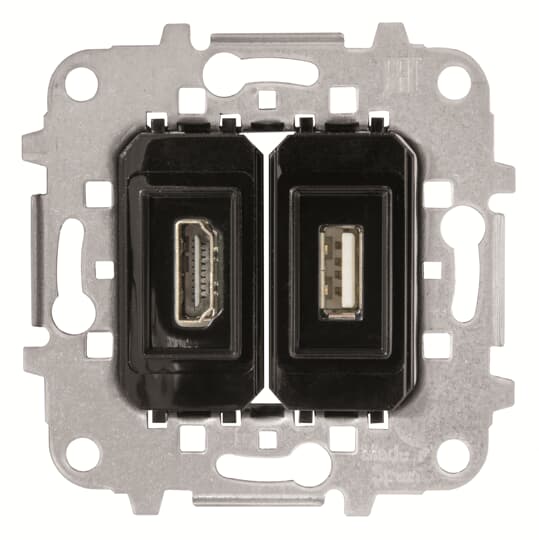

| Long Description: | Front: 1x HDMI connector (Type A connector) & 1xUSB 2.0 connector (Type A connector).Rear: 1x HDMI connector (Type A connector) fitted at 90º angle & USB screw terminals (5 wires).Supports HDMI 1.4 and 2.0Without fixing claws.Cover plate code: 8555.1. |
| |
| Product Name: | HDMI + USB connectors female |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Outlet Orientation: | Straight |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.073 m |
| Product Net Height: | 0.052 m |
| Product Net Depth / Length: | 0.073 m |
| Product Net Weight: | 0.072 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 0.073 m |
| Package Level 1 Height: | 0.052 m |
| Package Level 1 Depth / Length: | 0.073 m |
| Package Level 1 Gross Weight: | 0.072 kg |
| Package Level 1 EAN: | 8427238172439 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000018 - Insert/cover for communication technology |
| ETIM 7: | EC000018 - Insert/cover for communication technology |
| ETIM 8: | EC000018 - Insert/cover for communication technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
| UNSPSC: | 39121463 |
