Article: 8162.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8162.1 |
| Product ID: | 2CLA816210A1001 |
| EAN: | 8427238045740 |

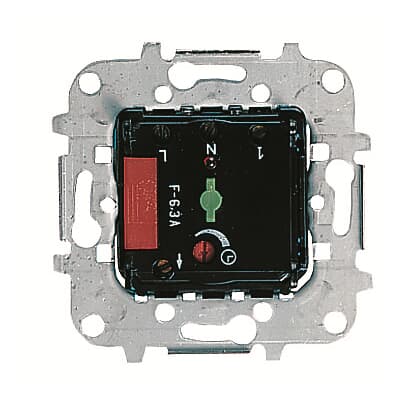

| Catalog Description: | 8162.1 Time delayed switch with triac |
| Long Description: | Rated voltage: 230 Vac / 50 HzPower: - Incandescent: 40 - 500 W - Halogen with transformer: 40 - 400 VA - Motors: 40 - 100 VA2 wire connection Delay setup: 10 sec. to 10 min. Overcurrent protection: with fuseIndicator LED lamp includedWithout fixing clawsOperating temperature: 0 - 40ºCCover plate code: 8562, 8462, 8262 & 5562 |
| |
| Product Name: | Time delayed switch with triac |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 3 A |
| Frequency (f): | 50...50 Hz |
| Power Watt: | 500 W |
| Minimum Switching Time: | 0.17 minute [unit of time] |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Material: | Plastic |
| Model Number: | Electronic |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.076 m |
| Product Net Height: | 0.064 m |
| Product Net Depth / Length: | 0.076 m |
| Product Net Weight: | 0.1 kg |
| Built-In Depth (t2): | 33.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 8427238045740 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1745 |
| Instructions and Manuals: | 2CLX816229A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX816229A1001 |
| |
| ETIM 6: | EC001594 - Electronic time switch for domestic switching devices |
| ETIM 7: | EC001594 - Time switch for domestic switching devices |
| ETIM 8: | EC001594 - Time switch for domestic switching devices |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
