Article: ABB520BU11SP
Article: ABB520BU11SP

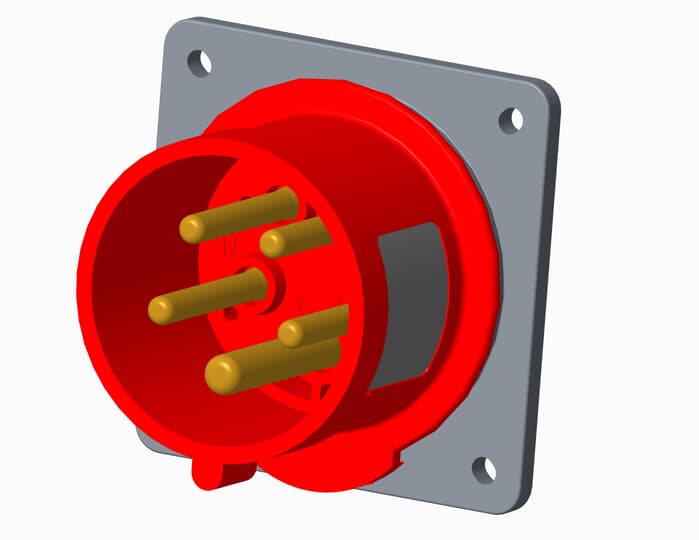

Panel mounted inlets, 3P+N+E, 11 hour, Red, IP44, 20A, 250/440 ... 265/460V, UL/CSA approved and CE compliant
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ABB520BU11SP |
| Product ID: | 2CMA104683R1000 |
| EAN: | 7392696046831 |
| Catalog Description: | Panel mounted inlets, 3P+N+E, 11 hour, Red, IP44, 20A, 250/440 ... 265/460V, UL/CSA approved and CE compliant |
| Long Description: | IEC Inlet for 20A and 440-460V AC 4P5W, UL/CSA approved and CE compliant |
| |
| EAN: | 7392696046831 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 75 mm |
| Product Net Height: | 75 mm |
| Product Net Weight: | 0.14 kg |
| |
| Package Level 1 Width: | 158 mm |
| Package Level 1 Depth / Length: | 345 mm |
| Package Level 1 Height: | 138 mm |
| Package Level 1 Gross Weight: | 1.4 kg |
| Package Level 1 EAN: | 7392696054645 |
| Package Level 1 Units: | box 10 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | 2CHC660174X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0022 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0022 |
| UL Certificate: | E109550-19950105 |
| REACH Declaration: | 2CMC700005D0022 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 1.5 ... 4 mm² |
| Cable Diameter: | 13 ... 17 mm |
| Color: | Red |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Design: | Surface mounted plug |
| Frequency (f): | 60 Hz |
| Function: | Inlet |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#ABB520BU11SP |
| Mounting Holes: | 60x66 |
| Number of Poles: | 5 |
| Order Multiple: | 10 piece |
| Product Main Type: | EBU |
| Product Name: | Panel mounted inlet |
| Rated Current (In): | 20 A |
| Rated Frequency (f): | 60...60 Hz |
| Rated Voltage (Ur): | 250/440 ... 265/460 V |
| Standards: | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700041M0005 |
| Installation Manual: | 2CMC700041M0005 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440519 |
| UNSPSC: | 39121402 |
| |
| Wire Size: | 14 ... 12 AWG |
| Tightening Torque: | WireClamp0.8 N·m |
