General Information | |
| Extended Product Type: | 1MM3ZPS |
| Product ID: | 2CPX037479R9999 |
| EAN: | 4011617374794 |

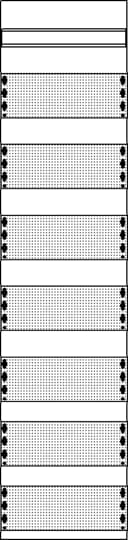

| Catalog Description: | 1MM3ZPS Telecommunications board |
| Long Description: | Telecommunications board, suitable for series: U and A and TG...SZ, for Communication technic, dimensions in mm (H x W x D): 1050 x 250 x 160, Grid unit 7 GU, Overall height 3, panel width 1, 0-rows, Space units 84, without N/PE |
| |
| Product Name: | Telecommunications board |
| Number of DIN Rails for Mounting: | 1 |
| Number of Modular Spacings per DIN Rail: | 12 |
| Number of Rows: | 0 |
| Enclosure Type: | Telecommunications board |
| Enclosure Type of Height: | 3 |
| DIN Place Units: | 84 |
| Module Function: | Communication technic |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 1050 mm |
| Product Net Depth / Length: | 160 mm |
| Product Net Weight: | 4.147 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 255.000 mm |
| Package Level 1 Height: | 51.000 mm |
| Package Level 1 Depth / Length: | 1050.000 mm |
| Package Level 1 Gross Weight: | 4.313 kg |
| Package Level 1 EAN: | 4011617374794 |
| Package Level 2 Units: | pallet (lift) 67 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1515.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| Package Level 2 Gross Weight: | 333.761 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A8145 |
| Instructions and Manuals: | 2CPC131120M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| 2CPC000031C0101 | |
| 2CPC000187C0101 | |
| 2CPC000188C0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC131120M5601 |
| |
| ETIM 6: | EC002574 - Built-in field voor telecommunications |
| ETIM 7: | EC002574 - Built-in field for telecommunications |
| ETIM 8: | EC002574 - Built-in field for telecommunications |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371098 |
| Object Classification Code: | U |
