Article: 1MM4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 1MM4 |
| Product ID: | 2CPX052302R9999 |
| EAN: | 4011617523024 |

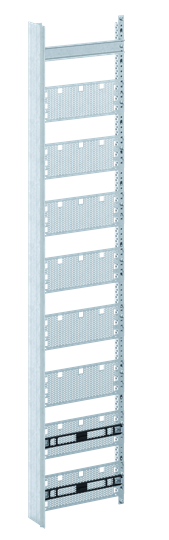

| Catalog Description: | 1MM4 Telecommunications board |
| Long Description: | media panel with 8 perforated mounting plates without cover, overall height 4, panel width 1, 8 grid units, fast boreless mounting of units |
| |
| Product Name: | Telecommunications board |
| Number of Rows: | 0 |
| DIN Place Units: | 96 |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 1200 mm |
| Product Net Depth / Length: | 120 mm |
| Product Net Weight: | 3.891 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 255.000 mm |
| Package Level 1 Height: | 51.000 mm |
| Package Level 1 Depth / Length: | 1350.000 mm |
| Package Level 1 Gross Weight: | 4.047 kg |
| Package Level 1 EAN: | 4011617523024 |
| Package Level 2 Units: | pallet (lift) 54 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1555.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4771 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002574 - Built-in field voor telecommunications |
| ETIM 7: | EC002574 - Built-in field for telecommunications |
| ETIM 8: | EC002574 - Built-in field for telecommunications |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371098 |
| Object Classification Code: | U |
