Article: 011140
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | 011140 |
| Product ID: | 7B011140 |

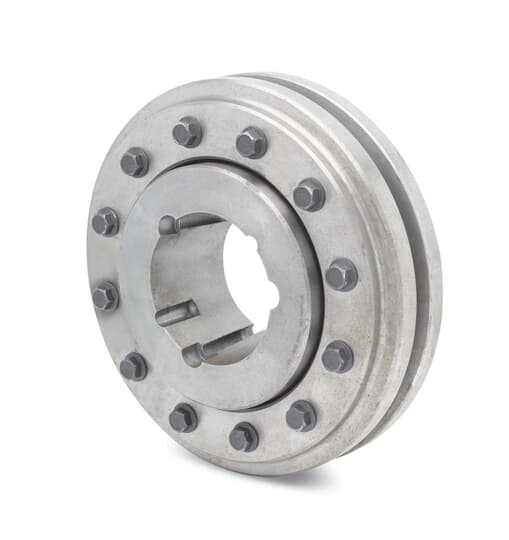

| ABB Type Designation: | PX200H TAPER-LOCK FLG ASSY 4545 |
| Catalog Description: | PX200H TAPER-LOCK FLG ASSY 4545 |
| |
| ABB Type Designation: | PX200H TAPER-LOCK FLG ASSY 4545 |
| ATEX Certificate: | YES |
| Angular Misalignment: | 4 ° |
| Axial Misalignment: | 0.3125 in |
| Bore Diameter: | Maximum 4.9375 in |
| Minimum 1.9375 in | |
| Bore Length: | 4.5 in |
| Bushing Size: | 4545 |
| Bushing Type: | Taper-Lock |
| Country of Origin: | United States (US) |
| Coupling Component: | Flange |
| Coupling Size: | PX200 |
| Coupling Style: | Tire |
| Coupling Type: | Elastomeric |
| Customs Tariff Number: | 84833032 |
| Flange Material: | Cast Iron |
| Global Commercial Alias: | 011140 |
| Gross Volume: | 2331.44 in³ |
| Gross Weight: | 83.536 kg |
| Horsepower Per 100 Rating: | 131 Hp |
| Invoice Description: | PX200H TAPER-LOCK FLG ASSY 4545 |
| Lubrication: | None |
| Made To Order: | No |
| Maximum Speed: | 1300 r/min |
| Minimum Order Quantity: | 1 piece |
| Order Multiple: | 1 piece |
| Outside Diameter: | 20 in |
| Parallel Misalignment: | 0.125 in |
| Product Frame Size: | PX200 |
| Product Name: | DODGE COUPLINGS |
| Product Net Height: | 17.78 cm |
| Product Net Length: | 46.355 cm |
| Product Net Weight: | 83.536 kg |
| Product Net Width: | 46.355 cm |
| Product Series: | TAPER-LOCK (TL) |
| Product Type: | Undefined |
| Quote Only: | No |
| Rated Torque: | 82500 in·lb |
| Remarks: | FLANGE |
| Selling Unit of Measure: | piece |
| Shaft Attachment: | Bushed |
| Shaft Spacer: | CLOSE-COUPLED |
| Shaft Spacing: | Close Coupled |
| Size: | PX200 |
| Spacer Distance: | CLOSE-COUPLED |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| Temperature Rating: | Maximum 180 °F |
| Minimum -45 °F | |
| Torsional Rigidity: | FLEXIBLE |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | Product Not in WEEE Scope |
