Article: 1YMB412101M0002
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Product ID: | 1YMB412101M0002 |
| ABB Type Designation: | 1YMB412101M0002 |
| EAN: | 5908270802377 |
| Catalog Description: | WBP 10 |

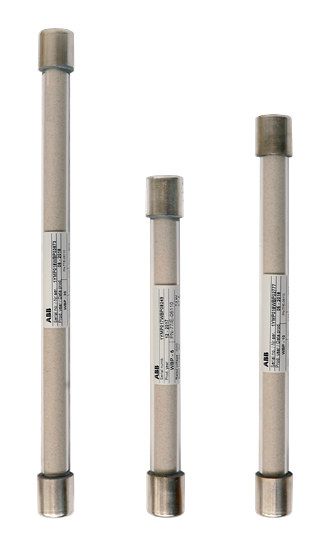

| Long Description: | IEC voltage transformer installation protection current limiting fuse-link for indoor application |
| |
| Product Name: | WBP 10 |
| Catalog Number: | 1YMB412101M0002 |
| EAN: | 5908270802377 |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Selling Unit of Measure: | piece |
| Country of Origin: | Poland (PL) |
| |
| Fuse Size: | e=250 mm |
| Product Net Length: | 250 mm |
| Tube Diameter: | 23 mm |
| Product Net Height: | 23 mm |
| Product Net Width: | 23 mm |
| |
| Standards: | PN-77/E-06110 |
| Rated Voltage (Ur): | 12 kV |
| Input Voltage Type: | AC |
| Rated Frequency (f): | 50 Hz |
| Rated Current (In): | 0.6 A |
| Maximum Breaking Capacity: | 63 kA |
| Options Available: | Without Striker |
| TCU (Temperature Control Unit): | No |
| Product Net Weight: | 0.16 kg |
| |
| ETIM 7: | EC003507 - Medium-/high voltage fuse |
| ETIM 8: | EC003507 - Medium-/high voltage fuse |
