General Information | |
| Extended Product Type: | 1HPS |
| Product ID: | 7TAH006110R0002 |
| EAN: | 5414363138747 |
| Catalog Description: | HSTRNGTH SPLITBOLT CONN 1STR-8SLD |

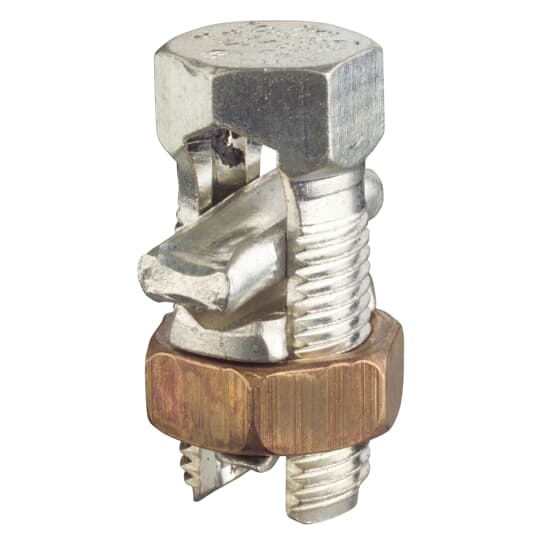

| Long Description: | Type HPS - Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 2-8, Conductor Range for Equal Main and Tap 1 Str-8 Sol, Min Tap with One Max Main 8 Sol, Tin Plated |
| |
| EAN: | 5414363138747 |
| |
| Package Level 1 Units: | 100 piece |
| Package Level 1 Width: | 6.5 in |
| 165 mm | |
| Package Level 1 Height: | 5.2 in |
| 132 mm | |
| Package Level 1 Depth / Length: | 7.3 in |
| 185 mm | |
| Package Level 2 Units: | 28800 piece |
| |
| Application: | Splicing, tapping or terminating conductors in power and grounding electrical connection. |
| Brand / Label: | Blackburn |
| Effective Date: | 19991027 |
| Material: | Copper Alloy |
| Number of Batteries: | 0 |
| Product Name: | SPLIT BOLT COUPLINGS |
| Product Type: | Split-Bolt |
| Special Functions: | Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copper. |
| Standards: | UL E9809 |
| Surface Finishing: | Electro Tin-Plated |
| UPC: | 783786200450 |
| |
| Data Sheet, Technical Information: | 1HPS |
| Instructions and Manuals: | 1HPS |
| |
| ETIM 6: | EC000491 - Earth terminal clamp |
| ETIM 7: | EC000491 - Earth terminal clamp |
| UNSPSC: | 39121408 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4541 >> Mechanical connectors |
