Article: 1HPW
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 1HPW |
| Product ID: | 7TAH006120R0001 |
| EAN: | 0783786200368 |
| Catalog Description: | AL SPLITBOLT CONN W/SP 1STR-8SLD |

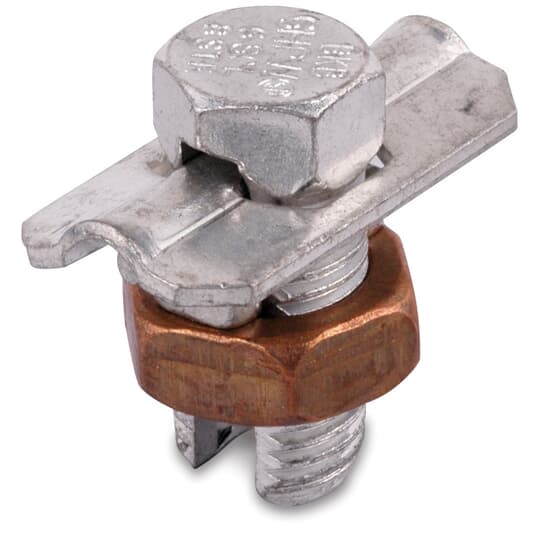

| Long Description: | Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1 Str.-8 Sol. |
| |
| EAN: | 0783786200368 |
| |
| Package Level 1 Units: | 100 piece |
| Package Level 1 Width: | 6.5 in |
| 165 mm | |
| Package Level 1 Height: | 5.7 in |
| 145 mm | |
| Package Level 1 Depth / Length: | 7.4 in |
| 188 mm | |
| |
| Application: | Splicing, tapping or terminating conductors in power and grounding electrical connection. |
| Brand / Label: | Blackburn |
| Effective Date: | 19991027 |
| Material: | Copper Alloy |
| Number of Batteries: | 0 |
| Product Name: | SPLIT BOLT COUPLINGS |
| Product Type: | Split-Bolt |
| Special Functions: | Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Spacer and washer of tin plated electrolytic copper. |
| Standards: | UL E9809 |
| Surface Finishing: | Electro Tin-Plated |
| UPC: | 783786200368 |
| |
| Data Sheet, Technical Information: | 1HPW |
| Instructions and Manuals: | 1HPW |
| |
| ETIM 6: | EC000491 - Earth terminal clamp |
| ETIM 7: | EC000491 - Earth terminal clamp |
| UNSPSC: | 39121408 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4541 >> Mechanical connectors |
