Article: 1MM1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 1MM1 |
| Product ID: | 2CPX037487R9999 |
| EAN: | 4011617374879 |
| Catalog Description: | 1MM1 Mounting chassis |

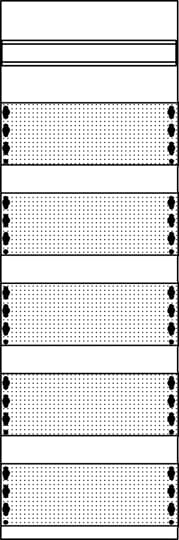

| Long Description: | media field with 5 perforated mounting plates without cover, overall height1, 5grid units, panel width1, fast boreless mounting of units |
| |
| Product Name: | Mounting chassis |
| Number of DIN Rails for Mounting: | 1 |
| Number of Modular Spacings per DIN Rail: | 12 |
| Number of Rows: | 0 |
| Enclosure Type: | Mounting chassis |
| Enclosure Type of Height: | 1 |
| DIN Place Units: | 60 |
| Module Function: | Media board with perforated sheet steel mounting plate |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 750 mm |
| Product Net Depth / Length: | 120 mm |
| Product Net Weight: | 2.607 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 255.000 mm |
| Package Level 1 Height: | 51.000 mm |
| Package Level 1 Depth / Length: | 750.000 mm |
| Package Level 1 Gross Weight: | 2.711 kg |
| Package Level 1 EAN: | 4011617374879 |
| Package Level 2 Units: | pallet (lift) 111 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1735.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| Package Level 2 Gross Weight: | 309.377 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4771 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000031C0101 | |
| 2CPC000187C0101 | |
| 2CPC000188C0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002574 - Built-in field voor telecommunications |
| ETIM 7: | EC002574 - Built-in field for telecommunications |
| ETIM 8: | EC002574 - Built-in field for telecommunications |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / Mounting chassis |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371098 |
| Object Classification Code: | U |
