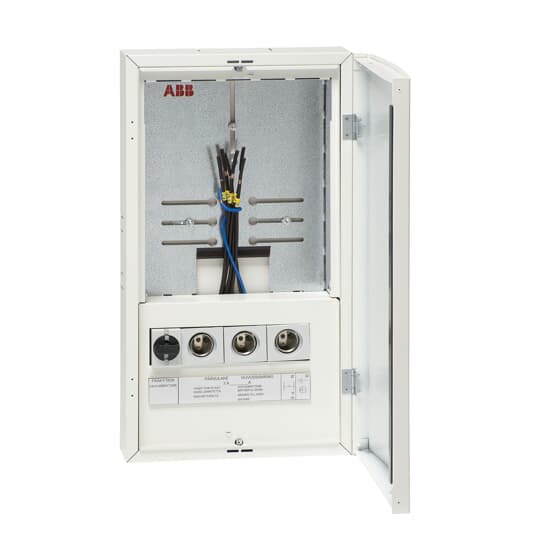

1M2T00S Metering panel surface mounted Näpsä Smart
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 1M2T00S |
| Product ID: | 3310110 |
| EAN: | 6410033101102 |
| Catalog Description: | 1M2T00S Metering panel surface mounted Näpsä Smart |
| Long Description: | Metering panel, series Näpsä, In 25A, 1-story, mounting type: surface mounted, for outdoor use, with door, degree of protection IP34, housing made of sheet steel, door is not included , steel sheet door, dimensions (mm): 275 x 500 x 102 |
| |
| Product Name: | Metering panel surface mounted Näpsä Smart |
| Number of Meter Cabinets: | 1 |
| Number of Panel Widths: | 1 |
| Number of Rows: | 0 |
| Lower Connection Space: | with Clamps |
| Mounting Type: | Surface mounted/partially recessed mounted |
| Material: | Steel plate |
| Model Number: | 1-story |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 275 mm |
| Product Net Height: | 500 mm |
| Product Net Depth / Length: | 102 mm |
| Product Net Weight: | 4.3 kg |
| Built-In Depth (t2): | 102 mm |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 285 mm |
| Package Level 1 Height: | 510 mm |
| Package Level 1 Depth / Length: | 112 mm |
| Package Level 1 Gross Weight: | 4.5 kg |
| Package Level 1 EAN: | 6410033101102 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365019 |
| E-Number (Finland): | 3310110 |
| Country of Origin: | Finland (FI) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000262 - Meter cabinet equipped |
| ETIM 7: | EC000262 - Meter cabinet equipped |
| ETIM 8: | EC000262 - Meter cabinet equipped |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365019 |
