Article: 31003
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 31003 |
| Product ID: | 7TAH006040R0017 |
| EAN: | 5414363140689 |
| Catalog Description: | LOCKTITE CU 1HOLE LUG 14-8 |

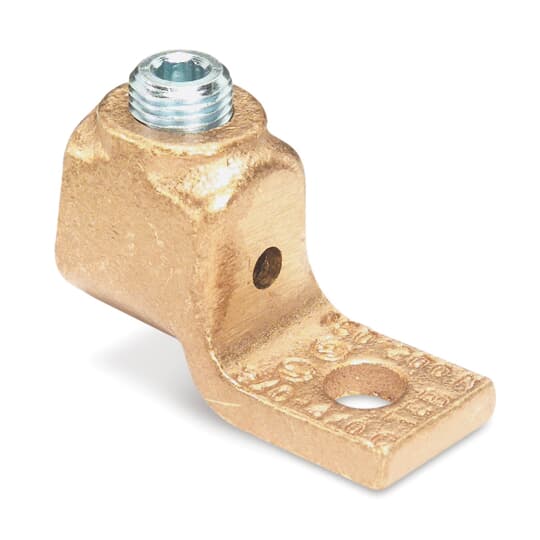

| Long Description: | Locktite Copper One-Hole Lug for Conductor Range #14 - #8 AWG or 4 - 14 NAVY. Length 1-1/8 inch, Width 1/2 inch, Pad Thickness 1/8 inch. Pad Length 9/16 inch. Bolt Size 1/4 inch, Height 15/32 inch. |
| |
| EAN: | 5414363140689 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 2.8 in |
| 71 mm | |
| Package Level 1 Height: | 2.3 in |
| 58 mm | |
| Package Level 1 Depth / Length: | 3.3 in |
| 84 mm | |
| Package Level 2 Units: | 50 piece |
| Package Level 2 Width: | 6.9 in |
| 175 mm | |
| Package Level 2 Height: | 4 in |
| 102 mm | |
| Package Level 2 Depth / Length: | 7.8 in |
| 198 mm | |
| |
| Brand / Label: | Blackburn |
| Effective Date: | 19680330 |
| Material: | Copper |
| Number of Batteries: | 0 |
| Product Name: | ELECTRICAL TERMINAL |
| Product Type: | Locktite Connectors |
| Special Functions: | Easily installed with key wrench. Convenient peephole permits easy inspection. |
| Standards: | UL E9809 |
| UPC: | 786210310039 |
| |
| Data Sheet, Technical Information: | 31003 |
| Instructions and Manuals: | 31003 |
| |
| UNSPSC: | 39121408 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4541 >> Mechanical connectors |
