General Information | |
| Global Commercial Alias: | 068040 |
| Product ID: | 7B068040 |

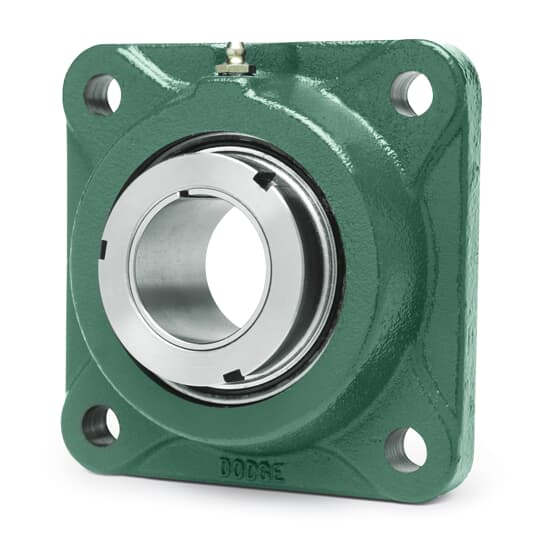

| ABB Type Designation: | F4B-GT-14-LL |
| Catalog Description: | F4B-GT-14-LL |
| |
| ABB Type Designation: | F4B-GT-14-LL |
| Bearing Series: | 214 Series |
| Bearing Type: | Ball |
| Bolt Circle: | 5.12 in |
| Bolt Width: | 0.625 in |
| Bolt to Bolt: | Maximum 5.88 in |
| Minimum 5.88 in | |
| Bore Length: | 2.6 in |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 84823000 |
| Dynamic Load Capacity: | 13995 lbf |
| Expansion Capability: | Non-Expansion (Fixed) |
| Global Commercial Alias: | 068040 |
| Grease Name: | Unirex N2 |
| Gross Weight: | 5.684 kg |
| Housing Construction: | Solid |
| Housing Material: | Cast Iron |
| Housing Type: | Four-Bolt Flange |
| Insert Material: | Steel |
| Invoice Description: | F4B-GT-14-LL |
| Lubrication: | Grease |
| Made To Order: | No |
| Maximum Speed: | 5000 r/min |
| Minimum Order Quantity: | 1 piece |
| Order Multiple: | 1 piece |
| Product Name: | STANDARD BALL BEARINGS |
| Product Net Height: | 9.677 cm |
| Product Net Length: | 21.59 cm |
| Product Net Weight: | 5.684 kg |
| Product Net Width: | 21.59 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Relubricatable: | Yes |
| Sealing Type: | Labyrinth |
| Selling Unit of Measure: | piece |
| Sensor Ready: | Adapter Required |
| Shaft Attachment: | Push-Pull Adapter |
| Standoff Included: | No |
| Static Load Capacity: | 9838 lbf |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| Suitable for High Temperature Application: | No |
| Suitable for Washdown Environment: | No |
