Article: 30P
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 30P |
| Product ID: | 7TBA008900R0007 |
| EAN: | 0067396008737 |
| Catalog Description: | WIRE CONN HITEMP BLK No22-No14 |

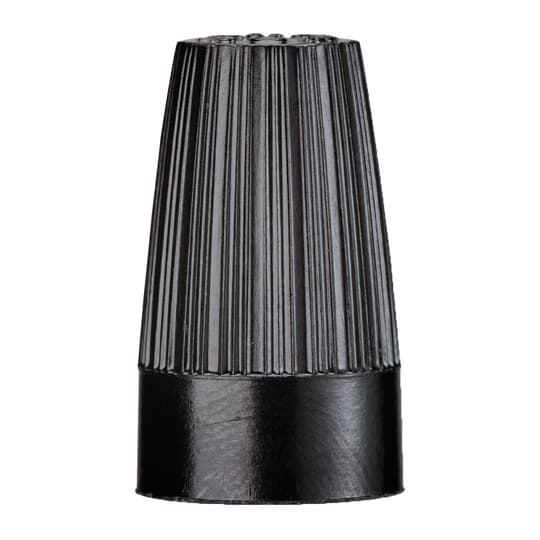

| Long Description: | Twist-on Wire Connector, Black, high temperature wire connector wire range #22-#14. Made of rugged, thermoplastic polymer material 150 Degree C (302 Degree F) rated. Approved for circuit and fixture type connections up to 300 V only. For copper conductor only. Package of 100 pieces. |
| |
| EAN: | 0067396008737 |
| |
| Product Net Length: | 0, mm |
| |
| Package Level 1 Units: | 100 piece |
| Package Level 1 Width: | 2.25 in |
| 57 mm | |
| Package Level 1 Height: | 1.75 in |
| 44 mm | |
| Package Level 1 Depth / Length: | 4 in |
| 102 mm | |
| Package Level 2 Units: | 1000 piece |
| Package Level 2 Width: | 4.87 in |
| 124 mm | |
| Package Level 2 Height: | 4.5 in |
| 114 mm | |
| Package Level 2 Depth / Length: | 8.75 in |
| 222 mm | |
| |
| Brand / Label: | Marrette |
| Color: | Black |
| Effective Date: | 19971027 |
| Material: | Phenolic |
| Number of Batteries: | 0 |
| Product Name: | WIRE CONNECTOR |
| Product Type: | High Temperature Wire Connectors |
| Special Functions: | External cap made of rugged, phenolic material and 150 degree C rated. |
| Standards: | UL E9809, CSA 6591 |
| Temperature Range: | 302 °F |
| 150 °C | |
| UPC: | 067396008737 |
| Voltage Rating: | 300 V |
| |
| Data Sheet, Technical Information: | 30P |
| Instructions and Manuals: | 30P |
| |
| ETIM 6: | EC002319 - Wire connector |
| ETIM 7: | EC002319 - Wire connector |
| UNSPSC: | 39121445 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4665 >> Twist on wire connector |
