Article: 2WSW-US
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 2WSW-US |
| Product ID: | 7TBA040490R0003 |
| EAN: | 0772197003569 |

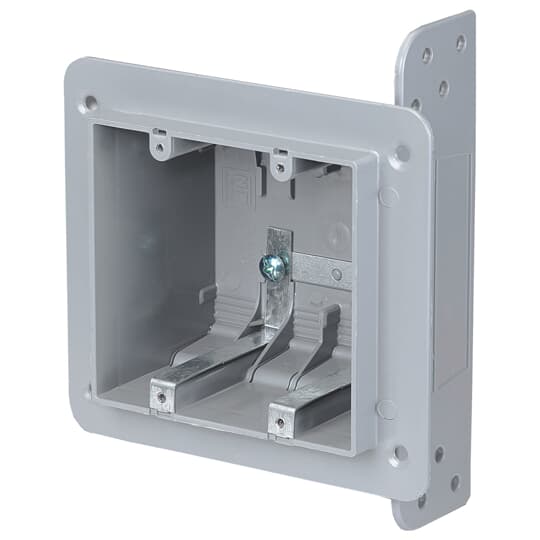

| Catalog Description: | TWO GANG DEVICE BOX CSA/UL |
| Long Description: | Two-Gang Device Box, Volume 33 Cubic Inches, Length 3-3/4 Inches, Width 4 Inches, Depth 2-3/4 Inches, Color Gray, Material Non-Metallic, Cable Entries 8. Fire resistance rating: 2 hours. |
| |
| EAN: | 0772197003569 |
| |
| Product Net Weight: | .295 lb |
| 133.787 g | |
| |
| Package Level 2 Units: | 60 piece |
| Package Level 2 Width: | 14.25 in |
| 362 mm | |
| Package Level 2 Height: | 22 in |
| 559 mm | |
| Package Level 2 Depth / Length: | 15.25 in |
| 387 mm | |
| |
| Brand / Label: | Carlon / Nutek |
| Cable Entry Position: | 8 |
| Color: | Gray |
| Material: | Non-Metallic |
| Number of Batteries: | 0 |
| Product Name: | PLASTIC SWITCH BOX |
| Product Type: | Two-Gang Device Box |
| Special Functions: | For use with non-metallic sheathed cable |
| Standards: | UL E11461, CSA 5043 |
| UPC: | 772197003569 |
| Volume: | 33 in³ |
| |
| Data Sheet, Technical Information: | 2WSW-US |
| Instructions and Manuals: | 2WSW-US |
| |
| ETIM 6: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| ETIM 7: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| UNSPSC: | 39121308 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4433 >> Outlet box |
