Article: 3-O-B-MXN
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 3-O-B-MXN |
| Product ID: | 7TAA001370R0000 |
| EAN: | 0781720001200 |
| Catalog Description: | DRWN 3 IN OCT OUTLT BX - 1.5 IN DP |

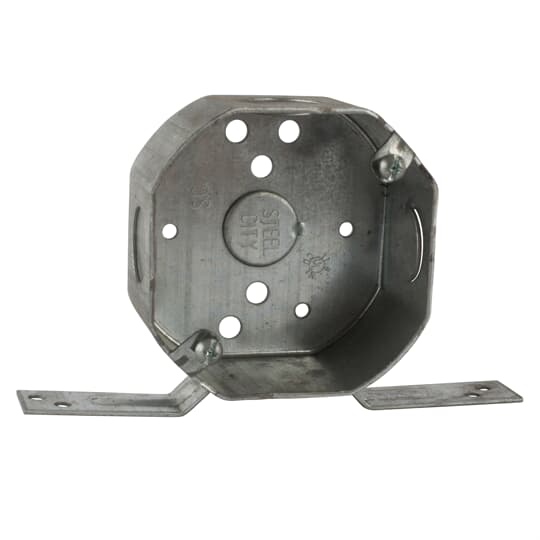

| Long Description: | Octagon Box, 11.8 Cubic Inches, 3-1/2 Inch Diameter, 1-1/2 Inch Deep, 1/2 Inch Knockouts, Galvanized Steel, Flat Bracket Offset 1/2 Inch from Face, Armored Cable Clamps (MXN) for Metal-Clad Cable |
| |
| EAN: | 0781720001200 |
| |
| Package Level 1 Units: | 50 piece |
| Package Level 1 Width: | 8.25 in |
| 210 mm | |
| Package Level 1 Height: | 10.75 in |
| 273 mm | |
| Package Level 1 Depth / Length: | 20.25 in |
| 514 mm | |
| Package Level 2 Units: | 2000 piece |
| |
| Application: | For use with armored/metal clad cable |
| Brand / Label: | Steel City |
| Color: | Silver |
| Effective Date: | 19960119 |
| Material: | Steel |
| Number of Batteries: | 0 |
| Product Name: | STEEL CITY BOXES AND ACCESS |
| Product Type: | Octogonal Boxes |
| Size: | 3-1/2 Inches Diameter x 1-1/2 Inch depth |
| Standards: | UL E2969 |
| UPC: | 781720001200 |
| Volume: | 11.8 in³ |
| |
| Data Sheet, Technical Information: | 3-O-B-MXN |
| Instructions and Manuals: | 3-O-B-MXN |
| |
| ETIM 6: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| ETIM 7: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| UNSPSC: | 39121316 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4449 >> Box/housing for built-in mounting in the wall/ceiling |
