Article: 3-O-LCE
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 3-O-LCE |
| Product ID: | 7TAA001350R0003 |
| EAN: | 0781720001187 |
| Catalog Description: | 3.5 IN.OCT OUTLT BX-1.5 IN.DEEP |

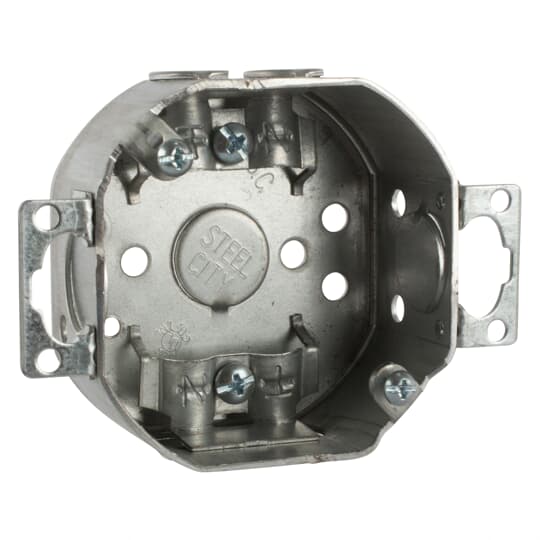

| Long Description: | Octagon Box, 11.8 Cubic Inches, 3-1/2 Inch Diameter, 1-1/2 Inch Deep, 1/2 Inch Knockouts, Galvanized Steel, Flat Bracket Offset 1/2 Inch from Face, Non-Metallic Cable Clamps (LC), Two Ears, One on Each of Two Opposite Sides |
| |
| EAN: | 0781720001187 |
| |
| Package Level 1 Units: | 50 piece |
| Package Level 1 Width: | 9.8 in |
| 249 mm | |
| Package Level 1 Height: | 7.6 in |
| 193 mm | |
| Package Level 1 Depth / Length: | 24.2 in |
| 615 mm | |
| Package Level 2 Units: | 2400 piece |
| |
| Application: | For use with non-metallic sheathed cable |
| Brand / Label: | Steel City |
| Color: | Silver |
| Effective Date: | 19960119 |
| Material: | Steel |
| Number of Batteries: | 0 |
| Product Name: | STEEL CITY BOXES AND ACCESS |
| Product Type: | Octogonal Boxes |
| Size: | 3-1/2 Inches Diameter x 1-1/2 Inch depth |
| Special Functions: | 10/32 inch Deep Slotted Screws Assembled |
| Standards: | UL E2969 |
| UPC: | 781720001187 |
| Volume: | 11.8 in³ |
| |
| Data Sheet, Technical Information: | 3-O-LCE |
| Instructions and Manuals: | 3-O-LCE |
| |
| ETIM 6: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| ETIM 7: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| UNSPSC: | 39121316 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4449 >> Box/housing for built-in mounting in the wall/ceiling |
