Article: 3004
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 3004 |
| Product ID: | 2CLA300400A1001 |
| EAN: | 8427238052793 |

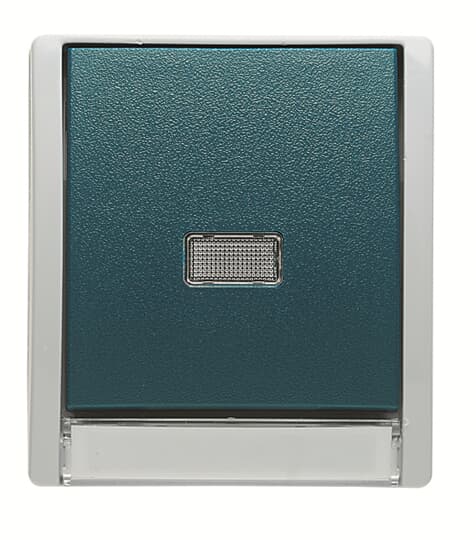

| Catalog Description: | 3004 Push button |
| Long Description: | IP44. 10 AX ; 250 V~. Label ref. 3000 can be attached. Lighting Led for label ref. 3090.1 |
| |
| Product Name: | Push button |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 10 A |
| Contacts Configuration: | 1 NO, 0 NC |
| Number of Poles: | 1 |
| Number of Rocker Switches: | 1 |
| Actuator Type: | Push button |
| Mounting Type: | Surface mounted (plaster) |
| Type of Fastening: | Screw |
| Surface Finishing: | 1NO0NC |
| Material: | Plastic |
| Model Number: | Single push button |
| Color: | Blue |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP44 |
| |
| Product Net Width: | 0.081 m |
| Product Net Height: | 0.156 m |
| Product Net Depth / Length: | 244 mm |
| Product Net Weight: | 0.14 kg |
| Built-In Depth (t2): | 25 mm |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.081 m |
| Package Level 1 Height: | 0.156 m |
| Package Level 1 Depth / Length: | 0.244 m |
| Package Level 1 Gross Weight: | 1.4 kg |
| Package Level 1 EAN: | 8427238052793 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000029 - Push button |
| ETIM 7: | EC000029 - Push-switch button |
| ETIM 8: | EC000029 - Push-switch button |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
