Article: 3125P6W
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 3125P6W |
| Product ID: | 2CMA166816R1000 |
| EAN: | 7392696668163 |

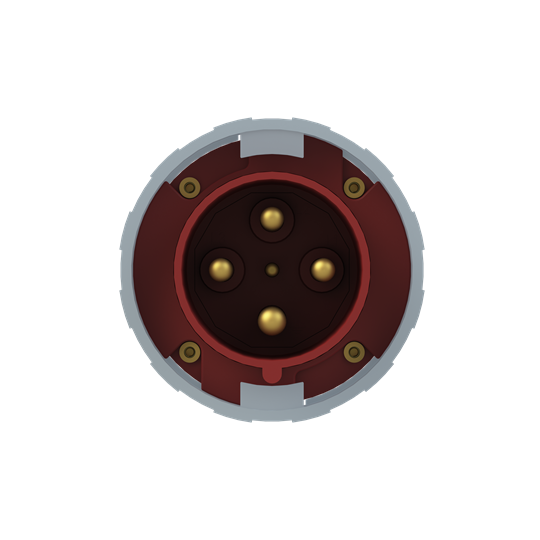

| Catalog Description: | 3125P6W Industrial Plug |
| Long Description: | Plug, earthing sleeve position 6h, rated current 125A, IP67 watertight, 3-poles+earth, frequency 50-60 Hz, color code Red |
| |
| E-Number (Sweden): | E2416305 |
| E-Number (Finland): | 2421650 |
| E-Number (Norway): | 1563913 |
| EAN: | 7392696668163 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 127 mm |
| Product Net Height: | 127 mm |
| Product Net Weight: | 1.43 kg |
| Mechanical Drawings: | 9AKK107492A4190 |
| |
| Package Level 1 Width: | 138 mm |
| Package Level 1 Depth / Length: | 158 mm |
| Package Level 1 Height: | 345 mm |
| Package Level 1 Gross Weight: | 1.54 kg |
| Package Level 1 EAN: | 7392696668163 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 121.64 kg |
| Package Level 2 EAN: | 7392696070287 |
| Package Level 2 Units: | pallet (lift) 66 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 16 ... 50 mm² |
| Cable Diameter: | 24 ... 48 mm |
| Cable Entry Position: | Cable entry, compression gland, internal and external cable clamp |
| Color: | Red |
| Connection Type: | Screw |
| Degree of Protection: | IP67 |
| IP69 | |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Plug |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#3125P6W |
| Number of Poles: | 4 |
| Order Multiple: | 1 piece |
| Product Main Type: | TP |
| Product Name: | Industrial Plug |
| Protection Type: | Watertight |
| Rated Current (In): | 125 A |
| Rated Voltage (Ur): | 380 ... 415 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable For: | Plugs |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC000040M0001 |
| Installation Manual: | 2CMC000040M0001 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440509 |
| UNSPSC: | 39120000 |
| |
| Wire Size: | 3 ... 1 AWG |
| Tightening Torque: | WireClamp5.6 N·m |
