Article: 3110-NP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 3110-NP |
| Product ID: | 7TAA106040R0009 |
| EAN: | 5414363439042 |
| Catalog Description: | 3/8 INCH INS TITE-BITE/STR SCREW |

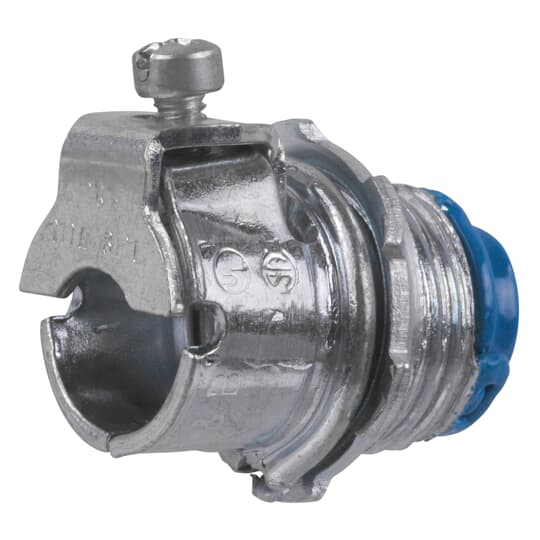

| Long Description: | Metal-Clad and Armored Cable Fitting, Straight, Trade Size 3/8 Inch, Steel with Electro Zinc Plated and Nylon Insulator |
| |
| EAN: | 5414363439042 |
| |
| Package Level 1 Units: | 50 piece |
| Package Level 1 Width: | 4.75 in |
| 121 mm | |
| Package Level 1 Height: | 4.25 in |
| 108 mm | |
| Package Level 1 Depth / Length: | 6.25 in |
| 159 mm | |
| Package Level 2 Units: | 500 piece |
| Package Level 2 Width: | 9.87 in |
| 251 mm | |
| Package Level 2 Height: | 6.5 in |
| 165 mm | |
| Package Level 2 Depth / Length: | 21.75 in |
| 552 mm | |
| |
| Application: | For Use with Armored Cable and Flexible Metal Conduit |
| Brand / Label: | T&B Cord & Cable Fittings |
| Color: | Metallic |
| Effective Date: | 20080327 |
| Insulation Material: | Nylon |
| Material: | Steel |
| Number of Batteries: | 0 |
| Product Name: | INSULATED FITTING FOR CONDUIT |
| Product Type: | Armored Cable/Flexible Metal Conduit Fittings |
| Size: | 3/8 Inch |
| Special Functions: | The Tough Lining of Insulation and the Tite-Bite Principles Make These Connectors a Must When Conductors are Subject to Conditions of Vibration or Strain. |
| Standards: | UL E23018 |
| Surface Finishing: | Electro Zinc Plated |
| UPC: | 786209893130 |
| |
| Data Sheet, Technical Information: | 3110-NP |
| Instructions and Manuals: | 3110-NP |
| |
| ETIM 6: | EC001180 - Screw connection for protective metallic hose |
| ETIM 7: | EC001180 - Screw connection for protective metallic hose |
| UNSPSC: | 39121419 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4573 >> Flex connectors |
