Article: 8140.5
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | 8140.5 |
| Product ID: | 2CLA814050A1001 |
| EAN: | 8427238046716 |

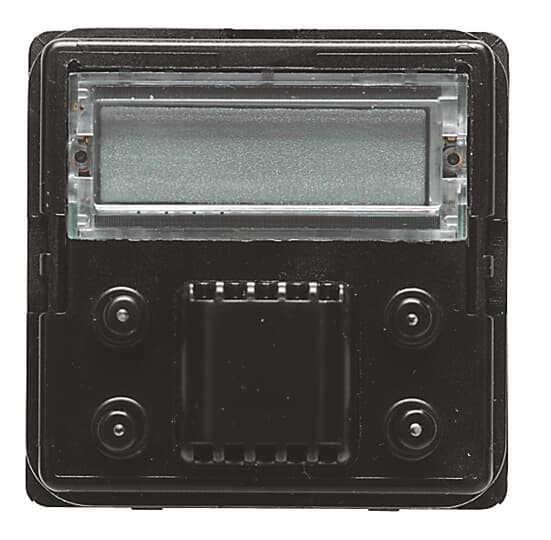

| Catalog Description: | 8140.5 Digital room thermostat |
| Long Description: | Rated voltage: 230Vac / 50-60HzPower consumption: < 1WOperating temperature range: + 0ºC to 50ºCMeasurement accuracy: ±2ºC (± 1ºC with calibration)Resolution: 0.1ºCControl output: Potential-free relay contacts Normally Open (NO)Maximum load: 3A cos = 0,5Output relay operation modes:- Hysteresis: 0.5ºC- Pulse-width modulation: with a ±4ºC difference with the set-point temperature, variable from 100% to 0% modulation.Without fixing claws Cover plate code: 8540.5, N2240.5, 8440.5, 8240.5 & 5540.5 |
| |
| Product Name: | Digital room thermostat |
| Power Consumption (@P | |
| cons | 1 W |
| Number of Outputs: | Heater 1 |
| Cooler 1 | |
| Operating Mode: | Button |
| Connection Type: | Two Wired |
| Mounting Type: | Flush mounted (plaster) |
| Sensor Type: | Resistance sensor |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| Temperature Class Default: | II |
| |
| Product Net Width: | 73 mm |
| Product Net Height: | 52 mm |
| Product Net Depth / Length: | 73 mm |
| Product Net Weight: | 0.078 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.073 m |
| Package Level 1 Height: | 0.052 m |
| Package Level 1 Depth / Length: | 0.073 m |
| Package Level 1 Gross Weight: | 0.078 kg |
| Package Level 1 EAN: | 8427238046716 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90321020 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX814059A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX814059A1001 |
| |
| ETIM 6: | EC000194 - Room temperature controller |
| ETIM 7: | EC010927 - Room thermostat |
| ETIM 8: | EC010927 - Room thermostat |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90321020 |
| UNSPSC: | 41112209 |
