Article: 8141.4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8141.4 |
| Product ID: | 2CLA814140A1001 |
| EAN: | 8427238031101 |

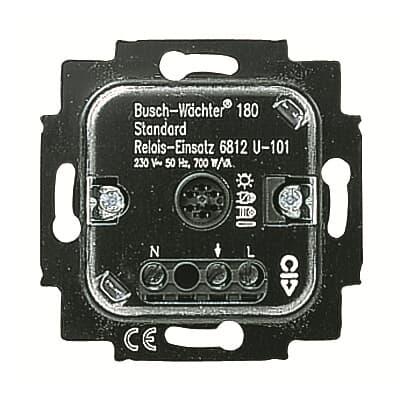

| Catalog Description: | 8141.4 Relay switch for motion sensor |
| Long Description: | Rated voltage: 230 V, +10 % / -10 %Rated frequency: 50 Hz3 wire connection (neutral conductor required).For 8541.1, 8441.1 & 8241.1 motion sensors.Outputs: 1 Normally open contact, potential-boundSuitable for: 230 V incandescent lamps, 230 V halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are operated via transformers.Rated power: 700 W/VATemperature range (Device): 0 °C to 55 °CIncluded: fixing claws |
| |
| Product Name: | Relay switch for motion sensor |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 3 A |
| Frequency (f): | 50...50 Hz |
| Minimum Switching Capacity: | 700...700 W |
| Load Type: | Universal |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Model Number: | Relay |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.062 m |
| Product Net Height: | 0.073 m |
| Product Net Depth / Length: | 0.073 m |
| Product Net Weight: | 0.12 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.062 m |
| Package Level 1 Height: | 0.073 m |
| Package Level 1 Depth / Length: | 0.073 m |
| Package Level 1 Gross Weight: | 0.12 kg |
| Package Level 1 EAN: | 8427238031101 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A2195 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001588 - Electronic switch |
| ETIM 7: | EC001588 - Electronic switch |
| ETIM 8: | EC001588 - Electronic switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
