Article: 8130.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8130.1 |
| Product ID: | 2CLA813010A1001 |
| EAN: | 8427238057293 |

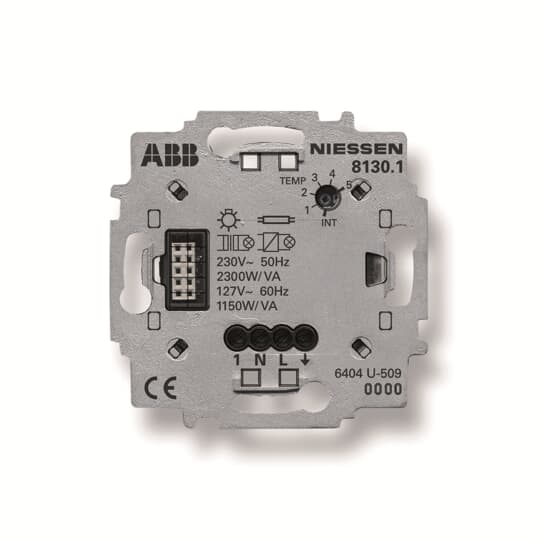

| Catalog Description: | 8130.1 Universal single relay time delayed switch |
| Long Description: | Rated voltage: 230 V~, +10 % / -10 %Rated frequency: 50 HzFor switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers.3 wire connection (neutral conductor required).With operating mode switch for operating mode: switch, time switch.Switch operating mode: press on the upper rocker switch half to switch the light on, press on the lower rocker switch half to switch the light off.Time switch operating mode: press on the upper rocker switch half to switch the light on, the light automatically switches off after a time delay. Manual switching off not possible. The delay can be set in 5 steps between 30 and 300 secs.Operation also possible via conventional push buttons 8104.X.Inputs: 1Polling voltage: 230 V~, Sensing pulse, L-wireOutputs: 1 Normally open contact, potential-boundSuitable for: ohmic, capacitive and inductive loadsRated current: 10 AXRated power: 2300 W/VAIncluded: attachable claws.Electronic cover plate code: 8530, 8430, 8230 & 5530 |
| |
| Product Name: | Universal single relay time delayed switch |
| Number of Channels: | 4 |
| Transmission Standard: | Radio Control |
| Mounting Type: | Flush mounted (plaster) |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.073 m |
| Product Net Height: | 0.052 m |
| Product Net Depth / Length: | 0.073 m |
| Product Net Weight: | 0.105 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.073 m |
| Package Level 1 Height: | 0.052 m |
| Package Level 1 Depth / Length: | 0.073 m |
| Package Level 1 Gross Weight: | 0.105 kg |
| Package Level 1 EAN: | 8427238057293 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1745 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000257 - Transmitter/Remote control for domestic switching devices |
| ETIM 7: | EC000257 - Transmitter/Remote control for domestic switching devices |
| ETIM 8: | EC000257 - Transmitter/Remote control for domestic switching devices |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122208 |
