Article: 8131
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8131 |
| Product ID: | 7TAD013170R0029 |
| EAN: | 5414363146421 |
| Catalog Description: | 3/4IN NYLINSL SHRT ELBOW IRN NOTHRD |

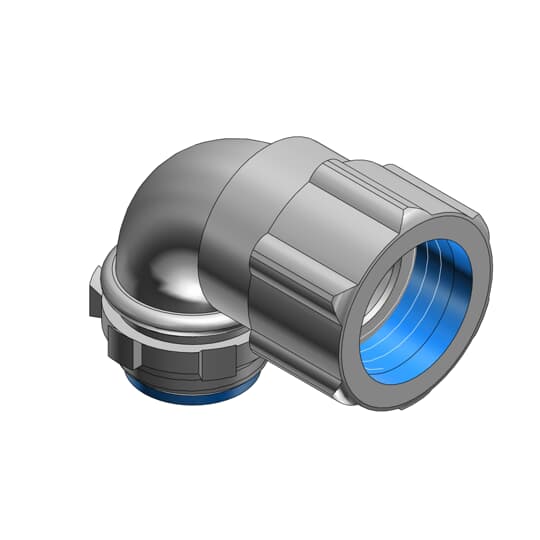

| Long Description: | 3/4 Inch Threadless Short Elbow, Malleable Iron and Nylon Insulated for Use with Rigid/IMC Conduit |
| |
| EAN: | 5414363146421 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 4.5 in |
| 114 mm | |
| Package Level 1 Height: | 3 in |
| 76 mm | |
| Package Level 1 Depth / Length: | 6 in |
| 152 mm | |
| Package Level 2 Units: | 20 piece |
| Package Level 2 Width: | 4.3 in |
| 109 mm | |
| Package Level 2 Height: | 6.5 in |
| 165 mm | |
| Package Level 2 Depth / Length: | 10.2 in |
| 259 mm | |
| |
| Application: | To Connect and Effectively Bond Threaded Rigid Metal Conduit/Intermediate Metal Conduit to a Box or Enclosure, or to Couple Ends of Threaded Conduit |
| Brand / Label: | T&B Rigid Fittings |
| Effective Date: | 19710209 |
| Material: | Malleable Iron |
| Nominal Size: | 3/4 in |
| Number of Batteries: | 0 |
| Product Name: | INSULATED CONDUIT ELBOW |
| Product Type: | Rigid/IMC Conduit Fittings |
| Special Functions: | Ideal for Entering Enclosure or Conduit Body At Right Angles |
| Standards: | UL E23018, CSA |
| UPC: | 708917081319 |
| |
| Data Sheet, Technical Information: | 8131 |
| Instructions and Manuals: | 8131 |
| |
| ETIM 6: | EC001493 - Bend for cable protection tubes |
| ETIM 7: | EC001493 - Bend for cable protection tubes |
| UNSPSC: | 39131717 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 5746 >> Electrical conduit elbow |
