General Information | |
| Extended Product Type: | 8134.1 |
| Product ID: | 2CLA813410A1001 |
| EAN: | 8427238044132 |

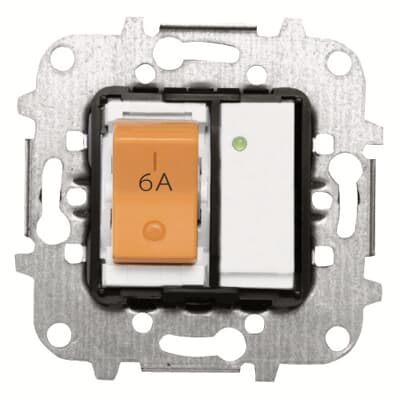

| Catalog Description: | 8134.1 Circuit breaker 6A & RCD 10mA |
| Long Description: | Rated voltage: 120 - 230 Vac; 50/60 Hz Rated current: 6A Braking capacity: 1.500A Residual current (sensitivity - I∆n): 10 mAC type magneto-thermic protection A type residual current protection Two-pole (1P + N) with 1 protected pole Without fixing claws Cover plate code: 8534, 8434, 8234 & 5534 |
| |
| Product Name: | Circuit breaker 6A & RCD 10mA |
| Rated Operational Voltage: | Maximum 230 V |
| Number of Poles: | 1 |
| Number of Switch Positions: | 2 |
| Design: | Built-in device |
| Actuator Type: | Rocker |
| Switch Type: | On / Off |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | Front IP20 |
| |
| Product Net Width: | 0.076 m |
| Product Net Height: | 0.064 m |
| Product Net Depth / Length: | 0.076 m |
| Product Net Weight: | 0.12 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.12 kg |
| Package Level 1 EAN: | 8427238044132 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363010 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002611 - Control switch |
| ETIM 7: | EC002611 - Control switch |
| ETIM 8: | EC002611 - Control switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85363010 |
| UNSPSC: | 39122200 |
