Article: 8114.5
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 8114.5 |
| Product ID: | 2CLA811450A1001 |
| EAN: | 8427238064703 |

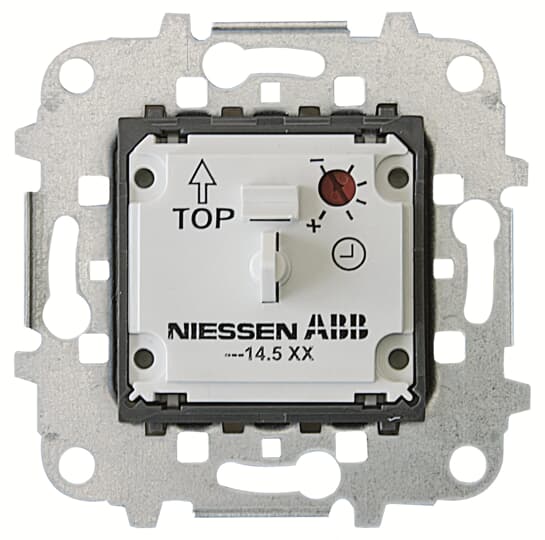

| Catalog Description: | 8114.5 Card switch 1-gang, 1-way, SP w/ time delay |
| Long Description: | Rated voltage: 110 - 250 Vac; 50/60 HzRated current: - Incandescent/halogen: 3.000W@230Vac / 1.600W@127Vac - Fluorescent: 1.300VA@230Vac / 700VA@127Vac - Electronic and ferromag. transf. and motors: 3.000VA@230Vac / 1.600VA@127Vac 3 wire connection (neutral conductor required)For 54mm width cards Locator LED lamp includedTime delayed switch: 5 - 90 seconds Cover plate code: 8514, 8414, 8214 & 5514 |
| |
| Product Name: | Card switch 1-gang, 1-way, SP w/ time delay |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 16 A |
| Frequency (f): | 50...60 Hz |
| Minimum Switching Capacity: | 3000...3000 W |
| Load Type: | Universal |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.076 m |
| Product Net Height: | 0.064 m |
| Product Net Depth / Length: | 0.076 m |
| Product Net Weight: | 0.078 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.078 kg |
| Package Level 1 EAN: | 8427238064703 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1745 |
| Instructions and Manuals: | 2CLX811459A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX811459A1001 |
| |
| ETIM 6: | EC001588 - Electronic switch |
| ETIM 7: | EC001588 - Electronic switch |
| ETIM 8: | EC001588 - Electronic switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
