General Information | |
| Extended Product Type: | 8104.9 |
| Product ID: | 2CLA810490A1001 |
| EAN: | 8427238028637 |

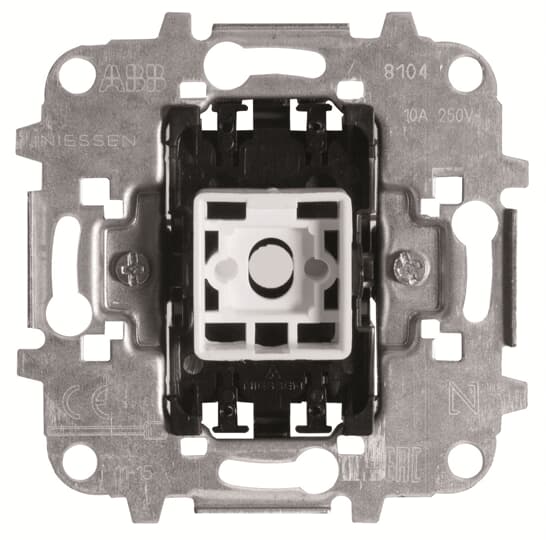

| Catalog Description: | 8104.9 Push-button 1-gang, single pole, NC |
| Long Description: | Rated voltage: 110 - 250 Vac Rated current: 10AX NC: normally closedScrewless terminals Included: fixing claws Optional: locator LED lamp 6192 BL (230 Vac) Rocker code: 8501, 8501.3, 8504, 8504.2, 8504.3, 8504.4, 8601, 8601.3, 8401, 8401.3, 8404, 8404.2, 8404.3, 8404.4, 8201, 8201.3, 8201.9, 5501, 5501.3, 5501.5, 5504, 5504.2, 5504.3 & 5504.4 |
| |
| Product Name: | Push-button 1-gang, single pole, NC |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 10 A |
| Contacts Configuration: | 0 NO, 1 NC |
| Number of Poles: | 1 |
| Number of Rocker Switches: | 1 |
| Actuator Type: | Rocker |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Surface Finishing: | 0NO1NC |
| Model Number: | Single push button |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.101 m |
| Product Net Height: | 0.102 m |
| Product Net Depth / Length: | 0.208 m |
| Product Net Weight: | 0.06 kg |
| Built-In Depth (t2): | 25 mm |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 0.101 m |
| Package Level 1 Height: | 0.102 m |
| Package Level 1 Depth / Length: | 0.208 m |
| Package Level 1 Gross Weight: | 0.3 kg |
| Package Level 1 EAN: | 8427238028637 |
| |
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1744 |
| Instructions and Manuals: | 2CLX810109A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX810109A1001 |
| |
| ETIM 6: | EC000029 - Push button |
| ETIM 7: | EC000029 - Push-switch button |
| ETIM 8: | EC000029 - Push-switch button |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
| UNSPSC: | 39122200 |
