Article: ABB520P4SP
Article: ABB520P4SP

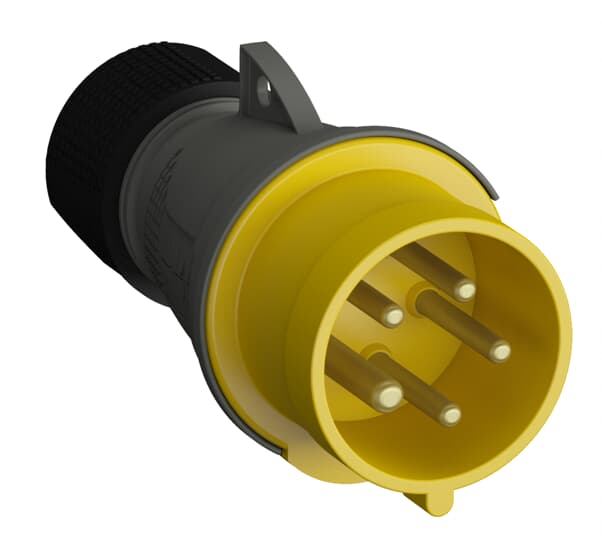

Industrial Plugs, 3P+N+E, 4 hour, Yellow, IP44, 20A, 100 ... 130V, UL/CSA approved and CE compliant
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ABB520P4SP |
| Product ID: | 2CMA104426R1000 |
| EAN: | 7392696044264 |
| Catalog Description: | Industrial Plugs, 3P+N+E, 4 hour, Yellow, IP44, 20A, 100 ... 130V, UL/CSA approved and CE compliant |
| Long Description: | IEC Plug for 20A and 125V AC 4P5W, UL/CSA approved and CE compliant |
| |
| EAN: | 7392696044264 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 69 mm |
| Product Net Height: | 78 mm |
| Product Net Weight: | 0.18 kg |
| |
| Package Level 1 Width: | 158 mm |
| Package Level 1 Depth / Length: | 345 mm |
| Package Level 1 Height: | 138 mm |
| Package Level 1 Gross Weight: | 1.8 kg |
| Package Level 1 EAN: | 7392696052078 |
| Package Level 1 Units: | box 10 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | 2CHC660174X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0022 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0022 |
| UL Certificate: | E109550-19950105 |
| REACH Declaration: | 2CMC700005D0022 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 1 ... 2.5 mm² |
| Cable Diameter: | 17 mm |
| Cable Entry Position: | Swivel |
| Color: | Yellow |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Plug |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#ABB520P4SP |
| Number of Poles: | 5 |
| Order Multiple: | 10 piece |
| Product Main Type: | EP |
| Product Name: | Industrial Plug |
| Rated Current (In): | 20 A |
| Rated Voltage (Ur): | 125 V |
| Standards: | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700041M0005 |
| Installation Manual: | 2CMC700041M0005 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440509 |
| UNSPSC: | 39121402 |
| |
| Wire Size: | 14 ... 12 AWG |
| Tightening Torque: | WireClamp0.8 N·m |
