General Information | |
| Extended Product Type: | DSE3416FR0 |
| Product ID: | 7TAA057030R0880 |
| EAN: | 0708917183730 |
| Catalog Description: | 30A,REC,3P4W,MG,416,3P208V,XP,SC |

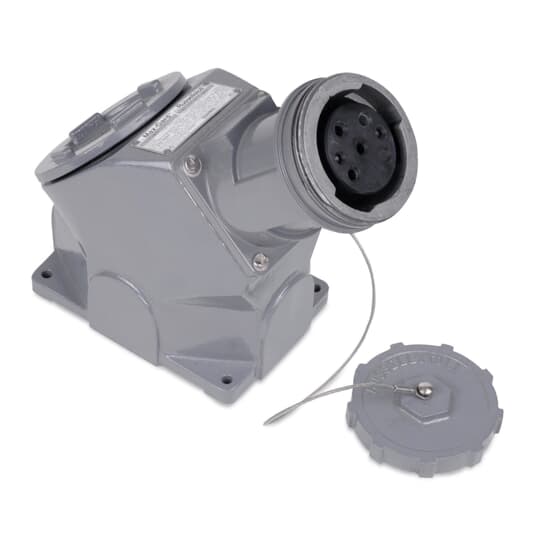

| Long Description: | Maxgard Explosion-Proof Non-Interlocked Receptacle, 30 Amp, 3 Pole 4 Wire, 30 208V, 60Hz |
| |
| EAN: | 0708917183730 |
| UPC: | 708917183730 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 11.13 in |
| 283 mm | |
| Package Level 1 Height: | 13.13 in |
| 334 mm | |
| Package Level 1 Depth / Length: | 13.75 in |
| 349 mm | |
| |
| Brand / Label: | Russellstoll |
| Current Rating: | 30 A |
| Effective Date: | 19960411 |
| Number of Batteries: | 0 |
| Number of Conductors: | 4 |
| Number of Poles: | 3 |
| Product Name: | RUSSELLSTOLL |
| Standards: | UL e10919 |
| Voltage Rating: | 208 V |
| |
| Data Sheet, Technical Information: | DSE3416FR0 |
| Instructions and Manuals: | DSE3416FR0 |
| |
| ETIM 6: | EC001322 - Round socket/plug for high currents |
| ETIM 7: | EC001322 - Round socket/plug for high currents |
| UNSPSC: | 39121404 |
| IDEA Granular Category Code (IGCC): | 4528 >> Electrical sleeves |
