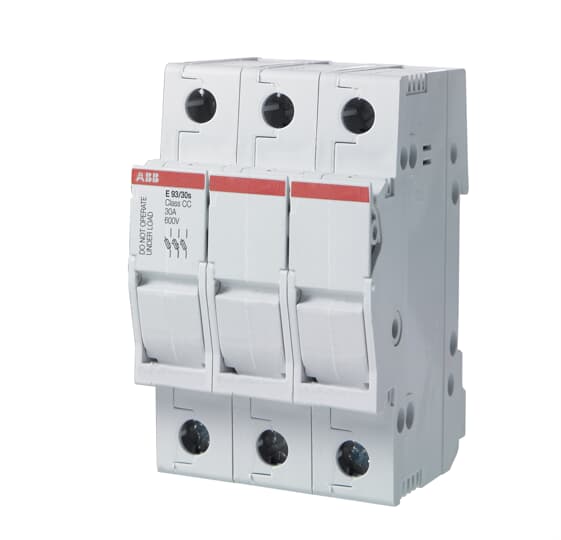

Article: E 93/30s CC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | E 93/30s CC |
| Product ID: | 2CSM299942R1801 |
| EAN: | 8012542999423 |
| Catalog Description: | E 93/30s CC Fuse holder |
| Long Description: | E 93/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses |
| |
| Product Name: | Fuse holder |
| Rated Voltage (Ur): | 600 V |
| Rated Operational Voltage: | 600 V AC |
| Voltage Range: | 600 V AC |
| Rated Current (In): | 30 A |
| Rated Primary Current (Ipn): | 30 A |
| Rated Frequency (f): | 60 Hz |
| Power Loss: | at Rated Operating Conditions per Pole 3 W |
| Number of Poles: | 3 |
| Number of Protected Poles: | 3 |
| Fuse Type: | class CC |
| Mounting Type: | DIN rail |
| Options Provided: | With LED |
| Fuse Size: | 10x38 mm |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | See RoHS Information |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 0.053 m |
| Product Net Height: | 0.085 m |
| Product Net Depth / Length: | 0.064 m |
| Product Net Weight: | 0.200 kg |
| Dimensions: | 3 module |
| Built-In Depth (t2): | 64 mm |
| |
| Package Level 1 Units: | 2 piece |
| Package Level 1 Width: | 0.105 m |
| Package Level 1 Height: | 0.085 m |
| Package Level 1 Depth / Length: | 0.064 m |
| Package Level 1 Gross Weight: | 0.396 kg |
| Package Level 1 EAN: | 8012542265955 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85361010 |
| Country of Origin: | Romania (RO) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CSC444003D2701 |
| Environmental Information: | See RoHS Information |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CSC444011K2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC444002B0204 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002705 - Holder for cylindrical fuse |
| ETIM 7: | EC002705 - Holder for cylindrical fuse |
| ETIM 8: | EC002705 - Holder for cylindrical fuse |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85361010 |
| Object Classification Code: | F |
